View compareHall Effect Sensor Module
Hall Effect Sensor Module
Regular price
Rs. 25.00
Regular price
Sale price
Rs. 25.00
Tax included.
Shipping calculated at checkout.
Specifications
In stock
Estimate delivery times: 3 to 5 working days
Let us Know About Your Query!
Contact Us
Description
Specifications
Shipping Information
Reviews
Description

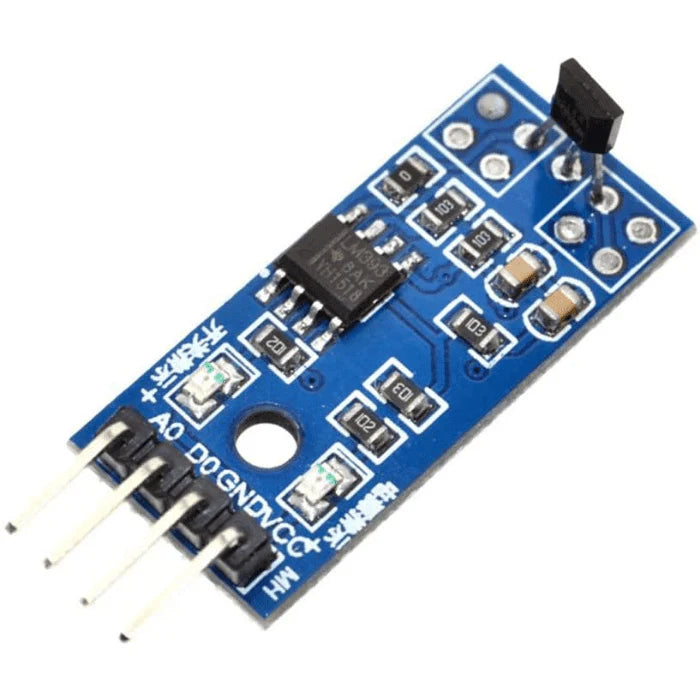

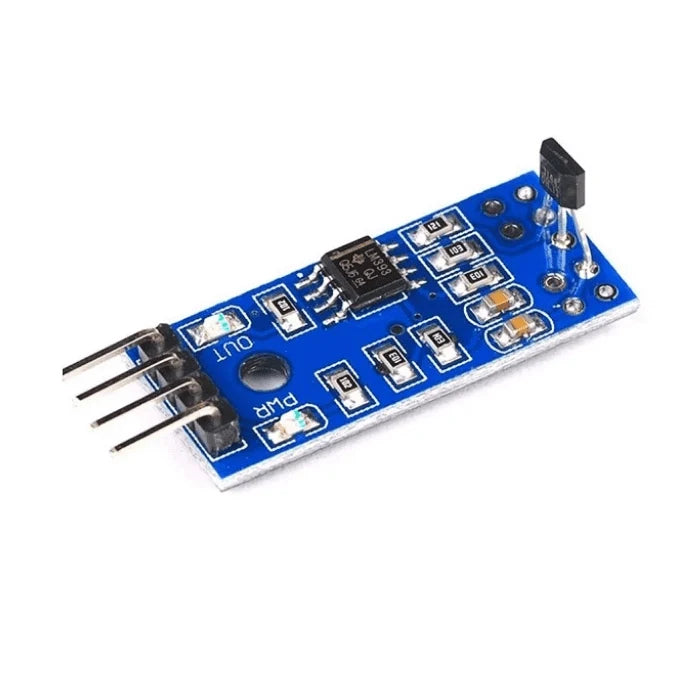

Hall Effect Sensor Module is used to detect the proximity of a magnet. It is very much smaller in size. When the magnetic field rises above a threshold level, the open-collector output transistor switches on, which pulls the logic-compatible output low and illuminates the onboard LED indicator.
It's fast (The turn-on threshold is 35-450 Gauss, the minimum hysteresis is 20 Gauss, and the operating voltage range is 4.5 - 24 volts. This module uses the Allegro MicroSystems A3144EUA sensor. It has a 3-pin interface, signal, V+, and GND.
To use this sensor/switch, place a 10K pull-up resistor between the "S" pin and the middle pin (+), and connect the "-" pin to the ground. Supply voltage to the middle pin. The "S" pin will go low (gets pulled to the ground) and the onboard LED indicator will turn on when a magnet is brought near.

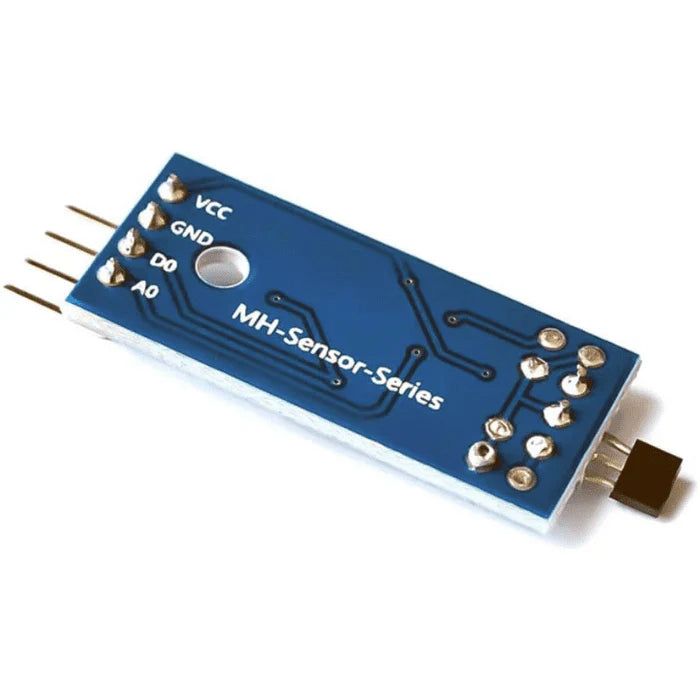

Pin Description :
VCC : 2.3 volts to 5.3 Volts
GND : power supply ground
AOUT (analog sensor output) : Arduino/ MCU input
DOUT (digital sensor output) : Arduino/MCU input
