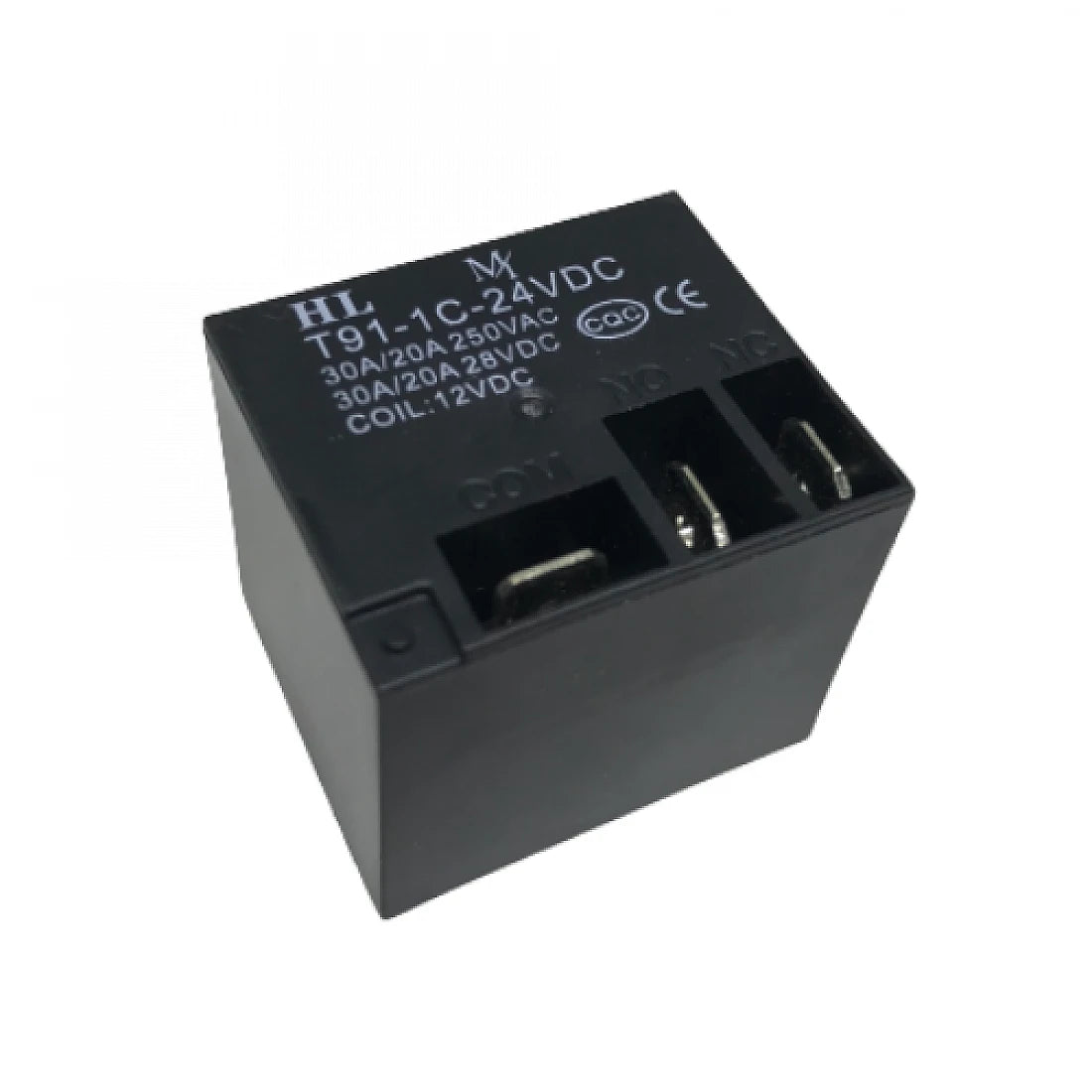

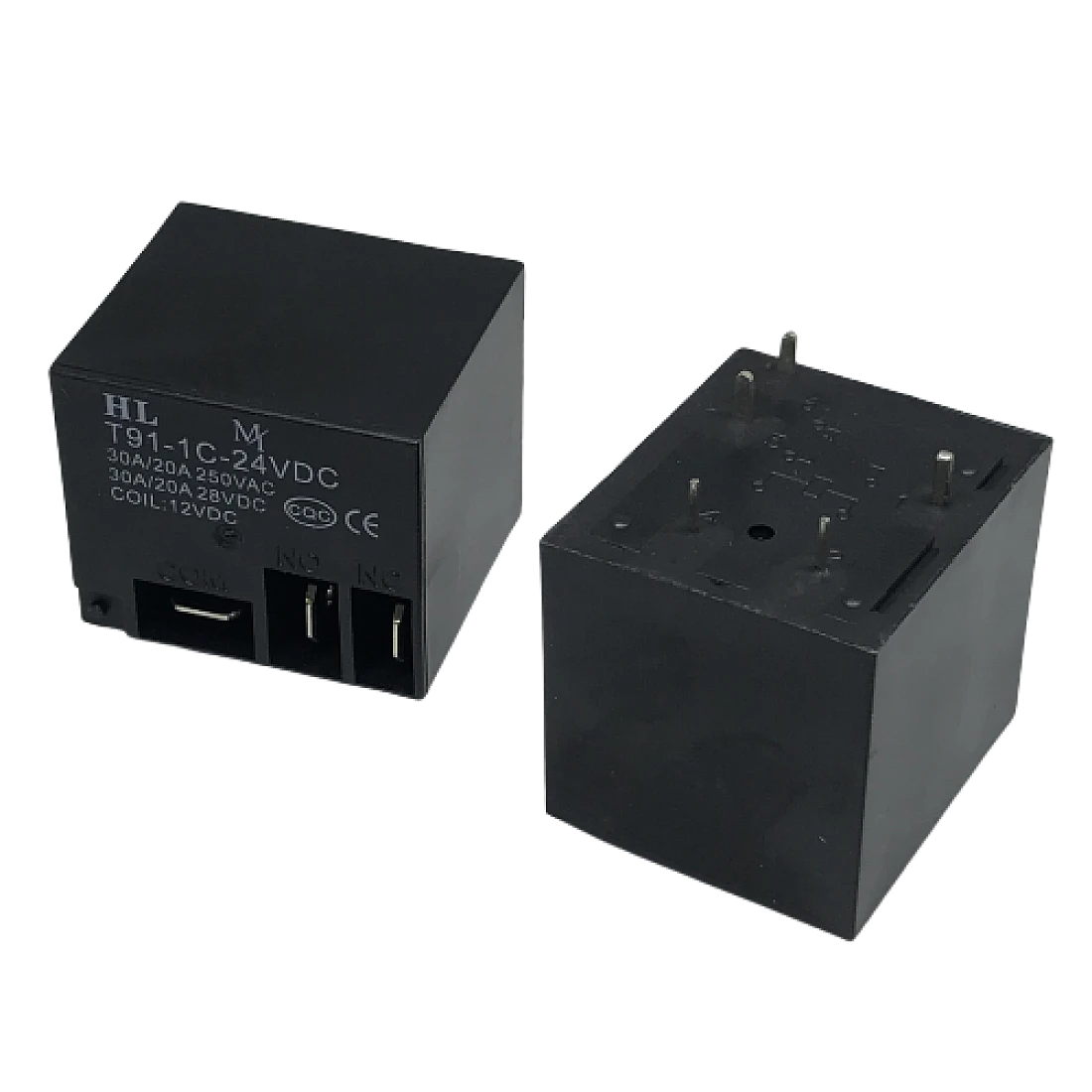

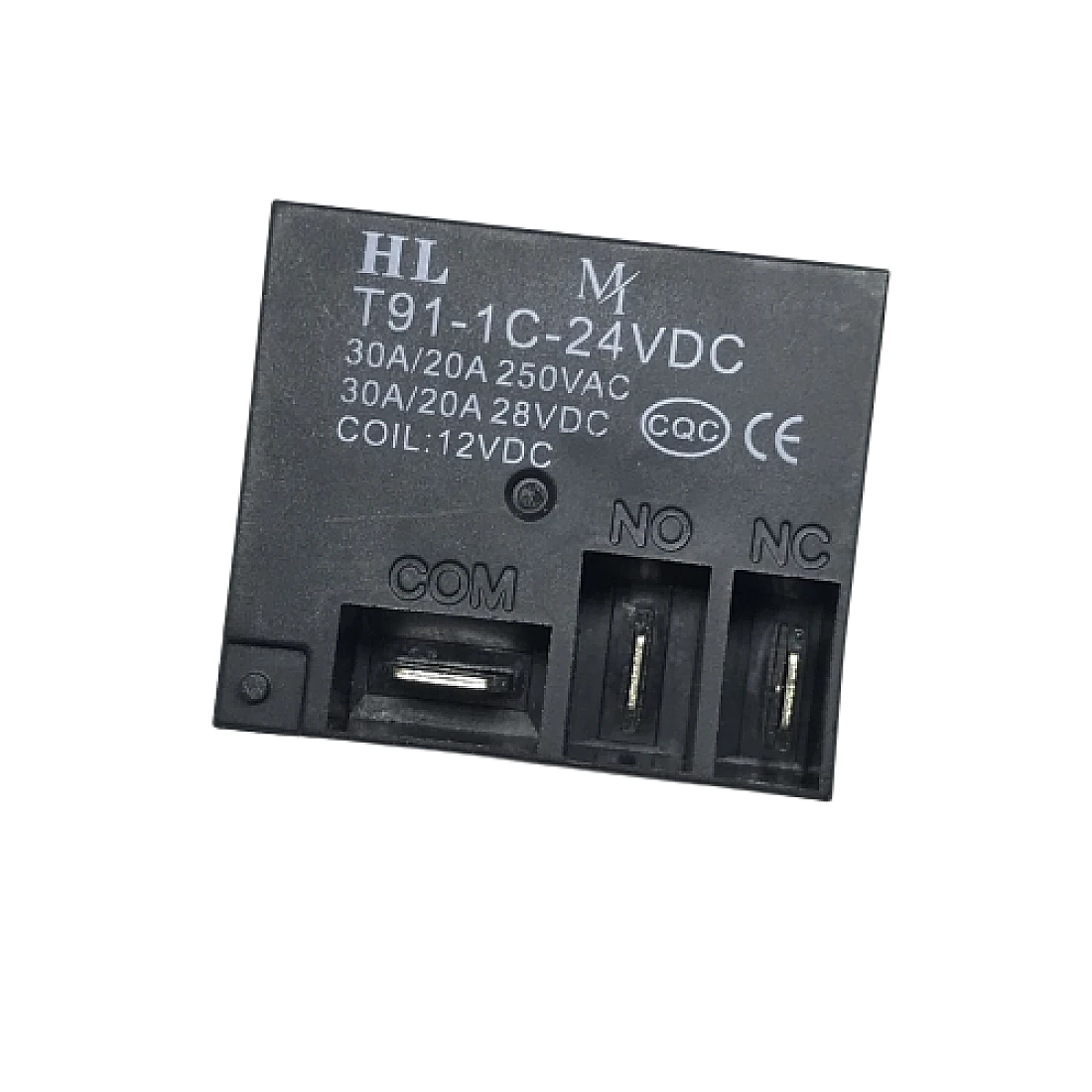

Name: 24V 30A Sugar Cube Relay (HLS-T91(16F)-1)
Brand: STEMpitara
SKU: MCR-RLY-021
Price: 55.0 INR
Availability: InStock

1 5

24V 30A Sugar Cube Relay (HLS-T91(16F)-1)

Rs. 55.00

Sold out

Tax included. Shipping calculated at checkout.

Specifications

Relay Type: HLS-T91(16F)-1
Rated Coil Voltage: DC12V
Contact Form: 1A / 1B / 1C (Form A / Form B / Form C)
Contact Material: Ag Alloy
Contact Ratings: 1A: 30A 240VAC / 20A 28VDC | 1B: 15A 240VAC / 10A 28VDC | 1C: 20A / 10A 240VAC / 28VDC
Max Switching Voltage: 250VAC / 30VDC
Max Switching Current: 30A
Max Switching Power: 6000VA / 560W
Initial Contact Resistance: 100mΩ Max at 6VDC 1A
Operate Time: 15ms Max
Release Time: 10ms Max
Insulation Resistance: 100MΩ Min at 500VDC
Dielectric Strength (Open Contacts): 1500VAC 50-60Hz, 1 Minute
Dielectric Strength (Contacts to Coil): 2000VAC 50-60Hz, 1 Minute
Ambient Temperature: -40°C to +85°C
Ambient Humidity: 40-85% RH
Shock Resistance: Malfunction 10G / Destruction 20G
Vibration Resistance: 10-55Hz, 1.5mm Double Amplitude
Life Expectancy (Electrical): 100,000 Operations (Rated Load)
Life Expectancy (Mechanical): 10,000,000 Operations (No Load)
Weight: Approx 32g
Safety Standard: UL, TUV, CQC
Mounting Type: PCB Mount / Through Hole

Product variants

In stock

Request A Quote

Estimate delivery times: 3 to 5 working days

View full details Enquire on WhatsApp

Let us Know About Your Query!

Description

Specifications

Attachments

Shipping Information

Reviews

Description

The HLS-T91(16F)-1 24V 30A Sugar Cube Relay is a general-purpose power relay built for switching electrical loads in control, automation, and power applications. It operates on a 24V DC coil with Ag Alloy contacts, delivering dependable high-current switching in a compact sugar cube package.

Specifications

Relay Type: HLS-T91(16F)-1
Rated Coil Voltage: DC12V
Contact Form: 1A / 1B / 1C (Form A / Form B / Form C)
Contact Material: Ag Alloy
Contact Ratings: 1A: 30A 240VAC / 20A 28VDC | 1B: 15A 240VAC / 10A 28VDC | 1C: 20A / 10A 240VAC / 28VDC
Max Switching Voltage: 250VAC / 30VDC
Max Switching Current: 30A
Max Switching Power: 6000VA / 560W
Initial Contact Resistance: 100mΩ Max at 6VDC 1A
Operate Time: 15ms Max
Release Time: 10ms Max
Insulation Resistance: 100MΩ Min at 500VDC
Dielectric Strength (Open Contacts): 1500VAC 50-60Hz, 1 Minute
Dielectric Strength (Contacts to Coil): 2000VAC 50-60Hz, 1 Minute
Ambient Temperature: -40°C to +85°C
Ambient Humidity: 40-85% RH
Shock Resistance: Malfunction 10G / Destruction 20G
Vibration Resistance: 10-55Hz, 1.5mm Double Amplitude
Life Expectancy (Electrical): 100,000 Operations (Rated Load)
Life Expectancy (Mechanical): 10,000,000 Operations (No Load)
Weight: Approx 32g
Safety Standard: UL, TUV, CQC
Mounting Type: PCB Mount / Through Hole

Attachments

hls-t91-1

Download
