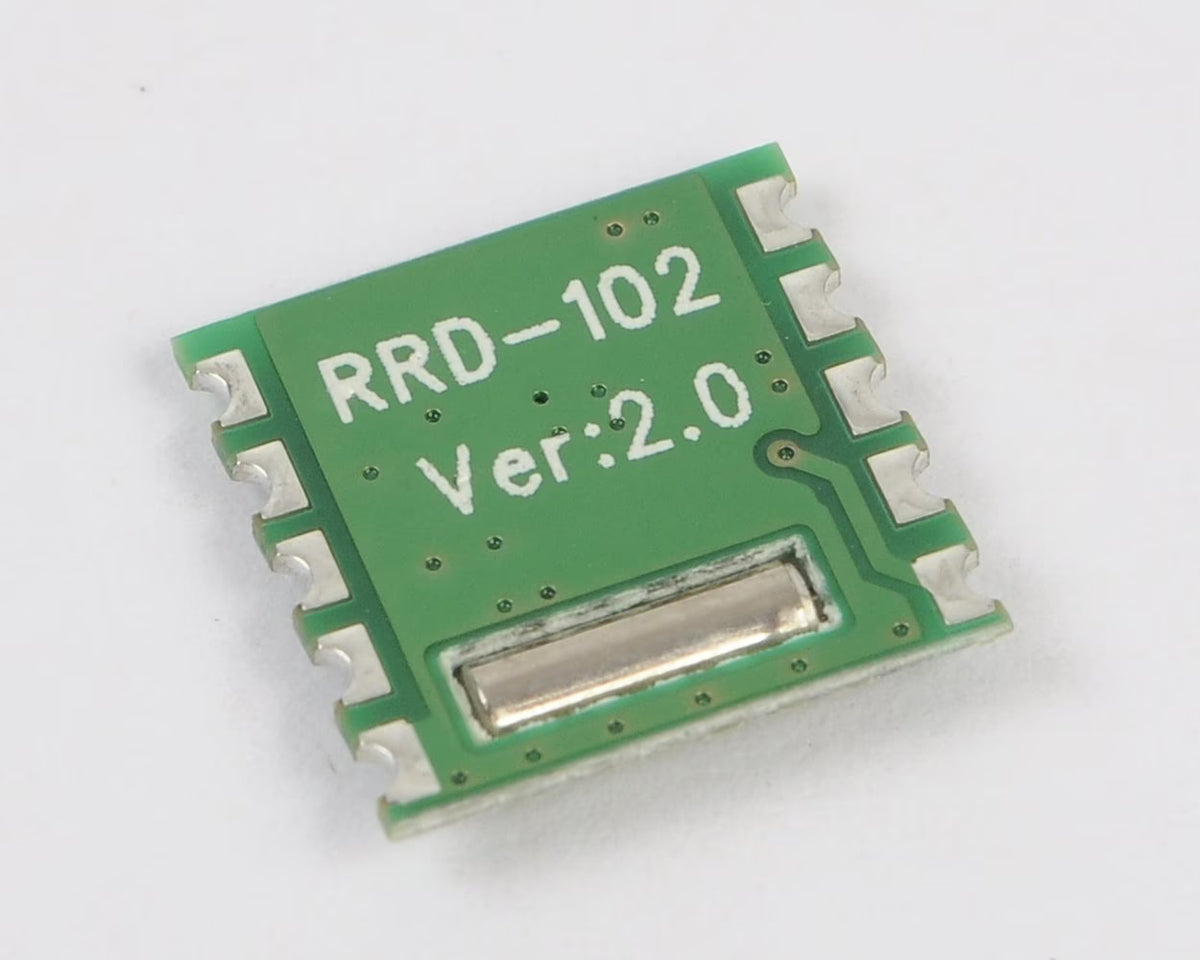

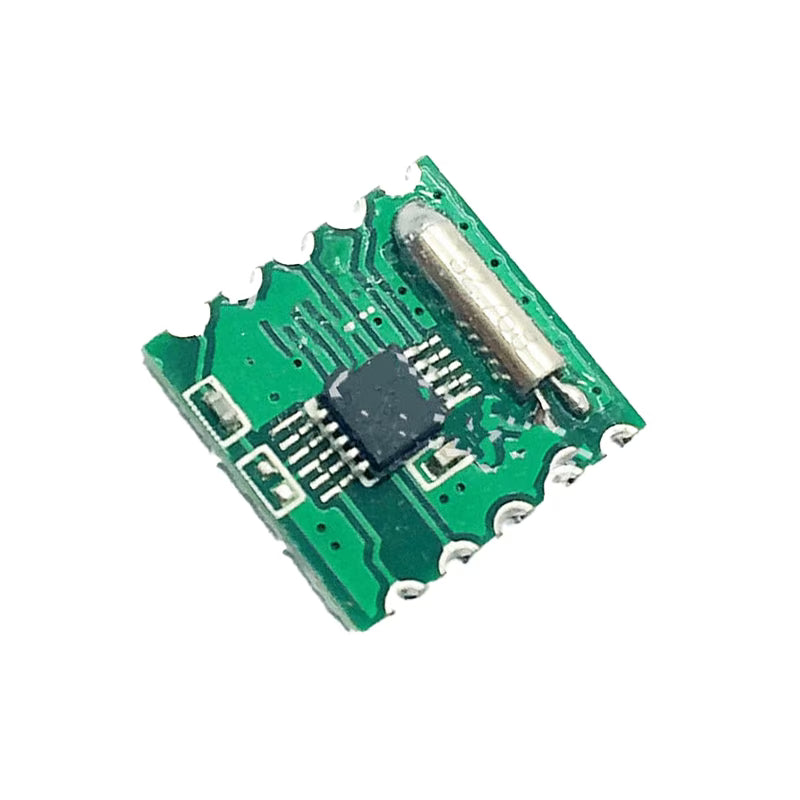

RDA5807M FM Stereo Radio Module is (FM Stereo radio Module) high sensitivity, low power consumption, ultra-small size of the FM stereo radio module. Using RDA Microelectronics of RDA5807M(or RDA5802NM), this circuit fewer external components, the noise factor is minimal. Small size, low power consumption, low cost, simple application, the use of a wide range of advantages. It is an easy-to-use and possessed highly cost-effective single-chip FM stereo radio module.

Move DVD, TV, MP3, MP4 and other built-in FM wide-band wireless receiver module. Mining, business, campus, residential, tourist areas and other public places, stereo FM radio system. Wireless audio and wireless stereo headset functionality. GPS navigation, TV broadcasting systems, and other wireless FM radio. High-end game consoles and wireless audio electronic toys. Mobile phones, mobile phones, intercom systems, mobile radio devices and other stereo radio. PDAs and Notebook PC and other peripheral applications.

Features :

CMOS single-chip fully-integrated FM tuner
Low power consumption
Support worldwide frequency band
Support RDS/RBDS
Digital low-IF tuner
Image-reject down-converter
High-performance A/D converter
IF selectivity performed internally
Fully integrated digital frequency synthesizer
Fully integrated on-chip RF and IF VCO.
Only support 2-wire bus interface
Fully integrated on-chip loop filter
Autonomous search tuning
Support 32.768KHz crystal oscillator
Digital auto gain control (AGC)
Digital adaptive noise cancellation
Mono/stereo switch
Soft Mute
High cut
Receive signal strength indicator (RSSI) and SNR
Bass boost
Volume control and mute
Line-level analog output voltage
Integrated LDO regulator.
