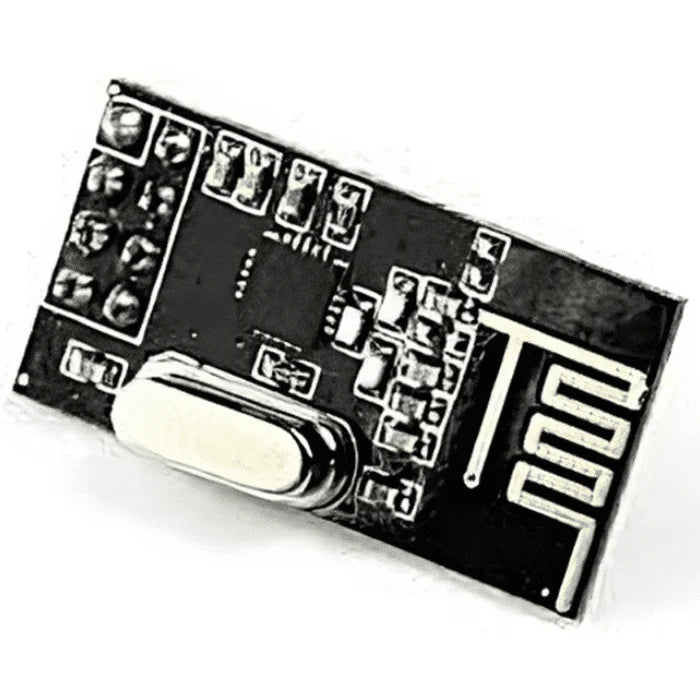

The NRF24L01 2.4GHz Antenna Wireless Transceiver Module is a compact and integrated IC designed for ultra-low power (ULP) RF transmission and reception in the 2.4GHz ISM band. It boasts a peak current of less than 14mA for both receiving and transmitting, a sub ?A power down mode, advanced power management, and a wide supply voltage range of 1.9 to 3.6V, which makes it a true ULP solution for achieving extended battery life, especially when running on coin cells or AA/AAA batteries.

These RF modules are widely used by Arduino enthusiasts and are suitable for various wireless control applications, given their transceiver nature, allowing for data transmission and reception. The NRF24L01+ 2.4GHz Antenna Wireless Transceiver Module is compatible with different MCUs, including Arduino, Mbed, and ARM. It can be easily powered by mounting it over a 3.3V Adapter Board designed for the 24L01 Wireless Module.

Features :

Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability,
Particularly suitable for industrial control applications.
125 Channels, Multi-point communication, and frequency hopping to meet the communication needs
Built-in hardware CRC error detection, Multipoint communication address control.
Low-power 1.9 ~ 3.6V, only 1uA on Power down mode
Built-in 2.4Ghz antenna
Available software to set the address only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient.
Built-in voltage regulator
Standard DIP Pitch Interface for embedded applications.
