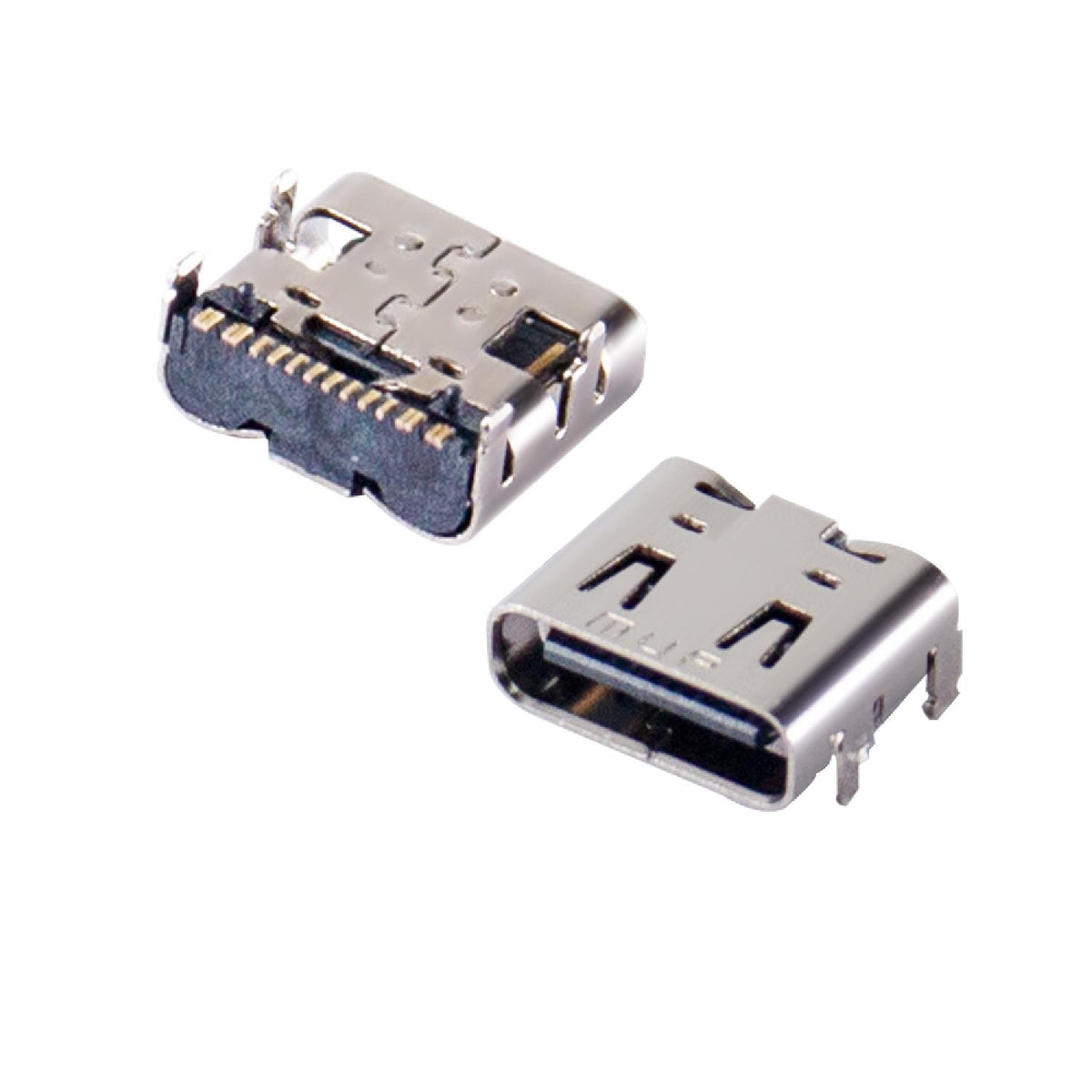

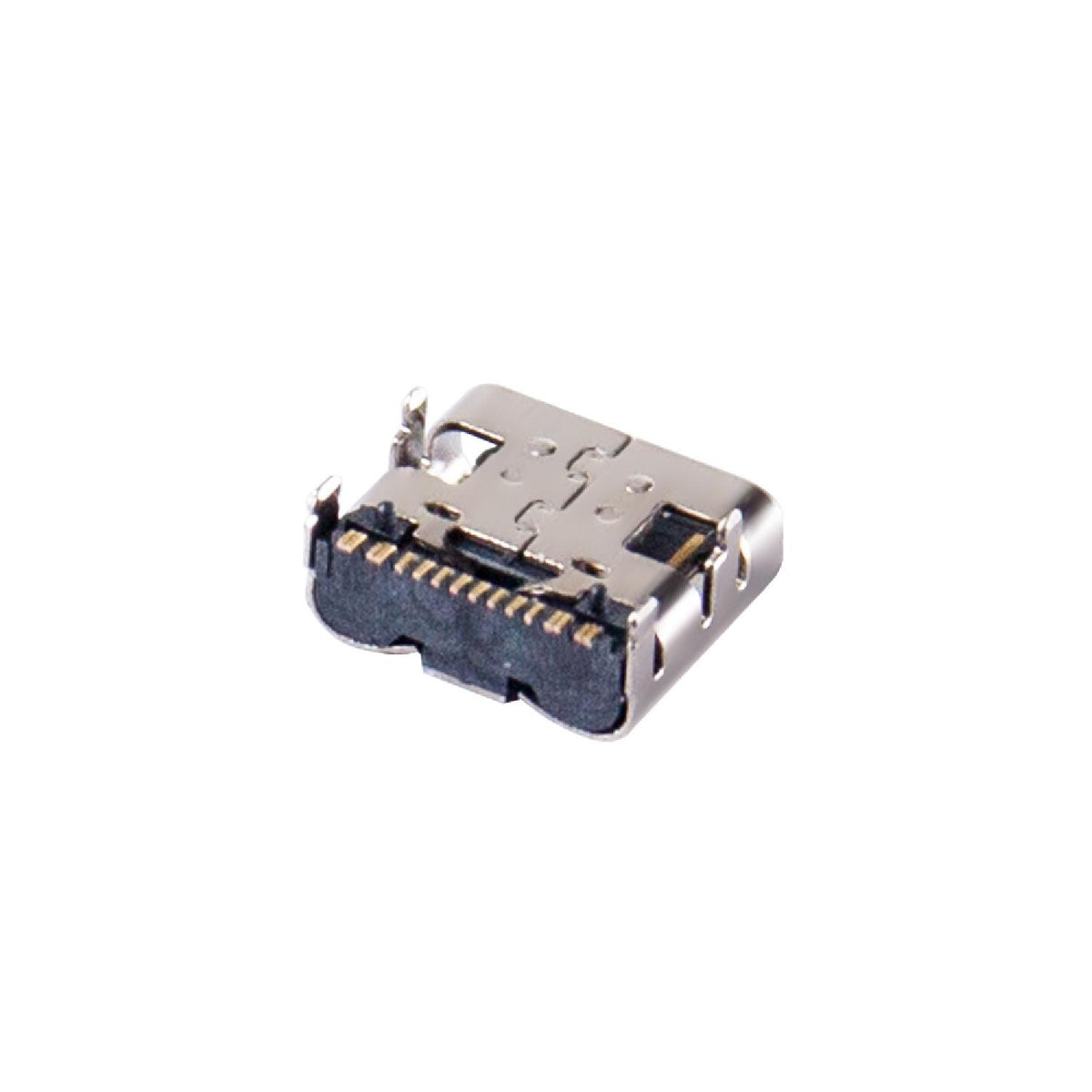

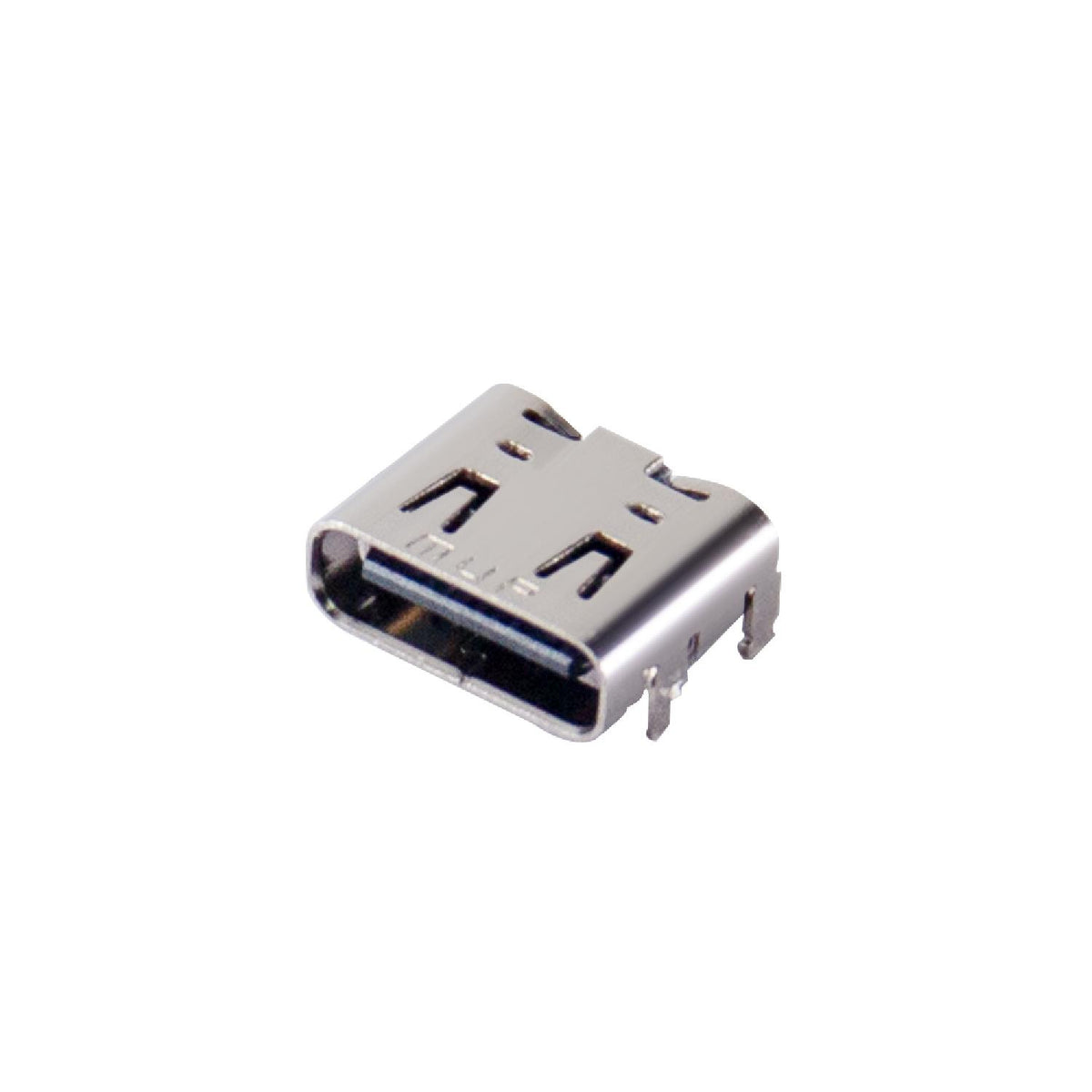

The MUP-U20401-1 is a compact and reliable USB Type-C female connector designed for Surface Mount Technology (SMT) applications. With a 16-pin single-row configuration and a 7.35mm length, this connector is ideal for high-density PCB layouts in various electronic devices. Features

USB Type-C Connector:

The MUP-U20401 features a USB Type-C interface, which is known for its reversible design, meaning it can be plugged in either way, making it more convenient than previous USB connectors. High-Speed Data Transfer:

Supports high-speed data transfer rates, potentially up to 10 Gbps or higher, depending on the specific USB version (e.g., USB 3.1 Gen 2 or USB 3.2). This makes it ideal for connecting devices like laptops, smartphones, external drives, and more. Power Delivery (PD):

The connector is capable of handling power delivery with a potential output of up to 100W (depending on the application and cable used), making it suitable for charging laptops, smartphones, and other devices. Versatile Compatibility:

USB Type-C is backward-compatible with previous USB standards (USB 2.0, USB 3.0, USB 3.1) when using the appropriate adapters or cables. Compact and Durable Design:

The USB Type-C connector is compact and durable, designed to withstand frequent plugging and unplugging, making it ideal for portable and consumer electronics. Enhanced Audio/Video Support:

With the USB Type-C port, devices can support audio and video output through alternate modes such as DisplayPort or HDMI, making it versatile for connecting monitors, projectors, and other display devices.
