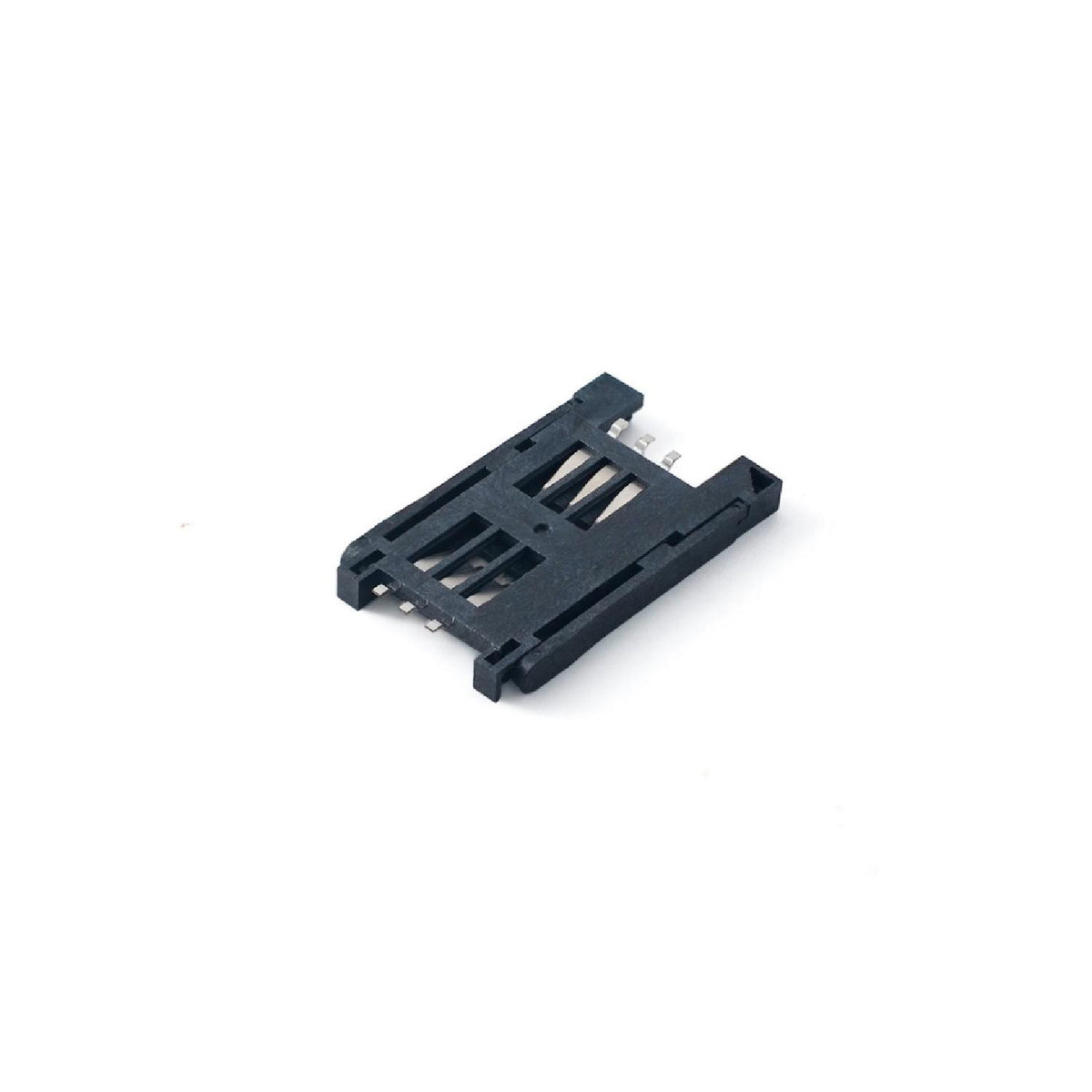

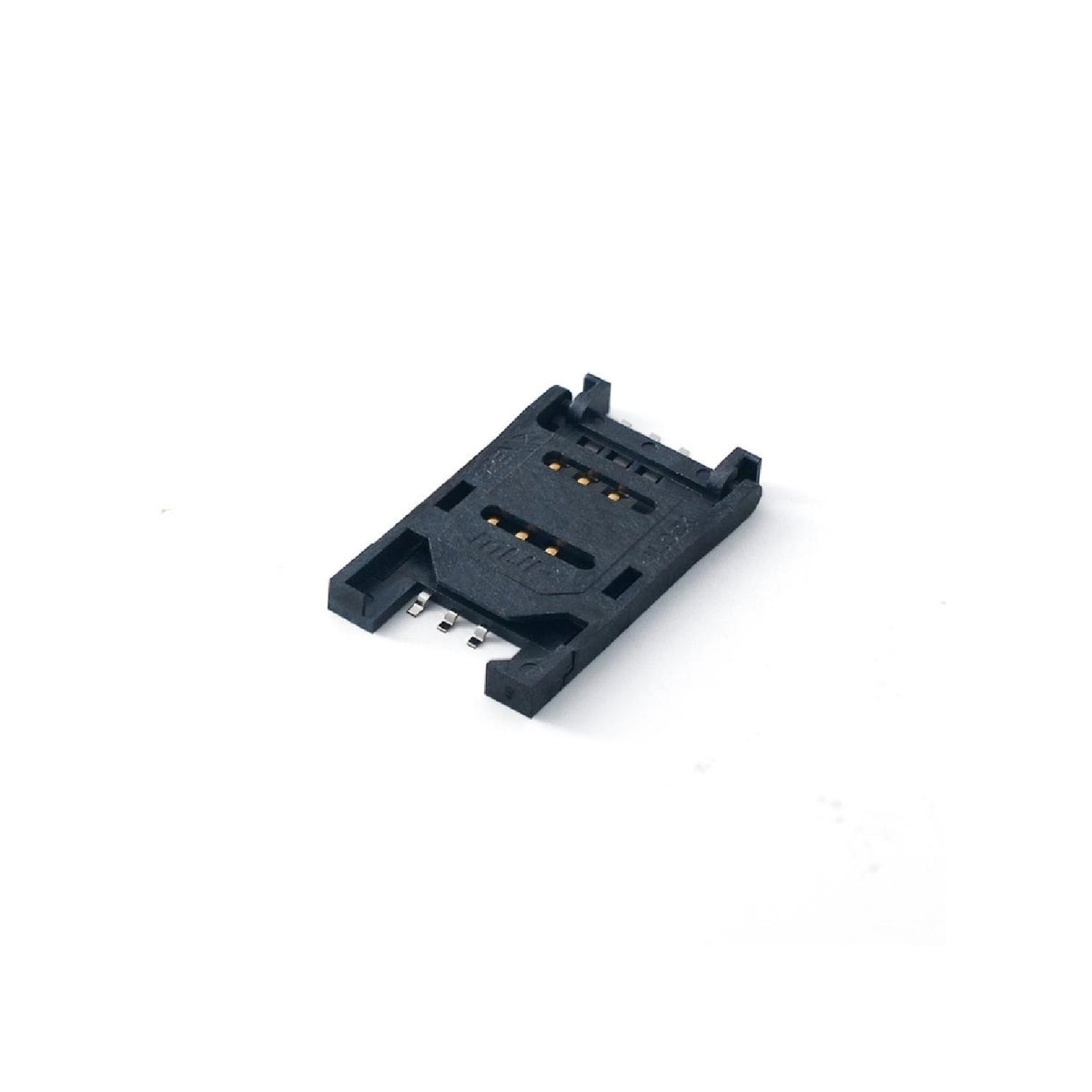

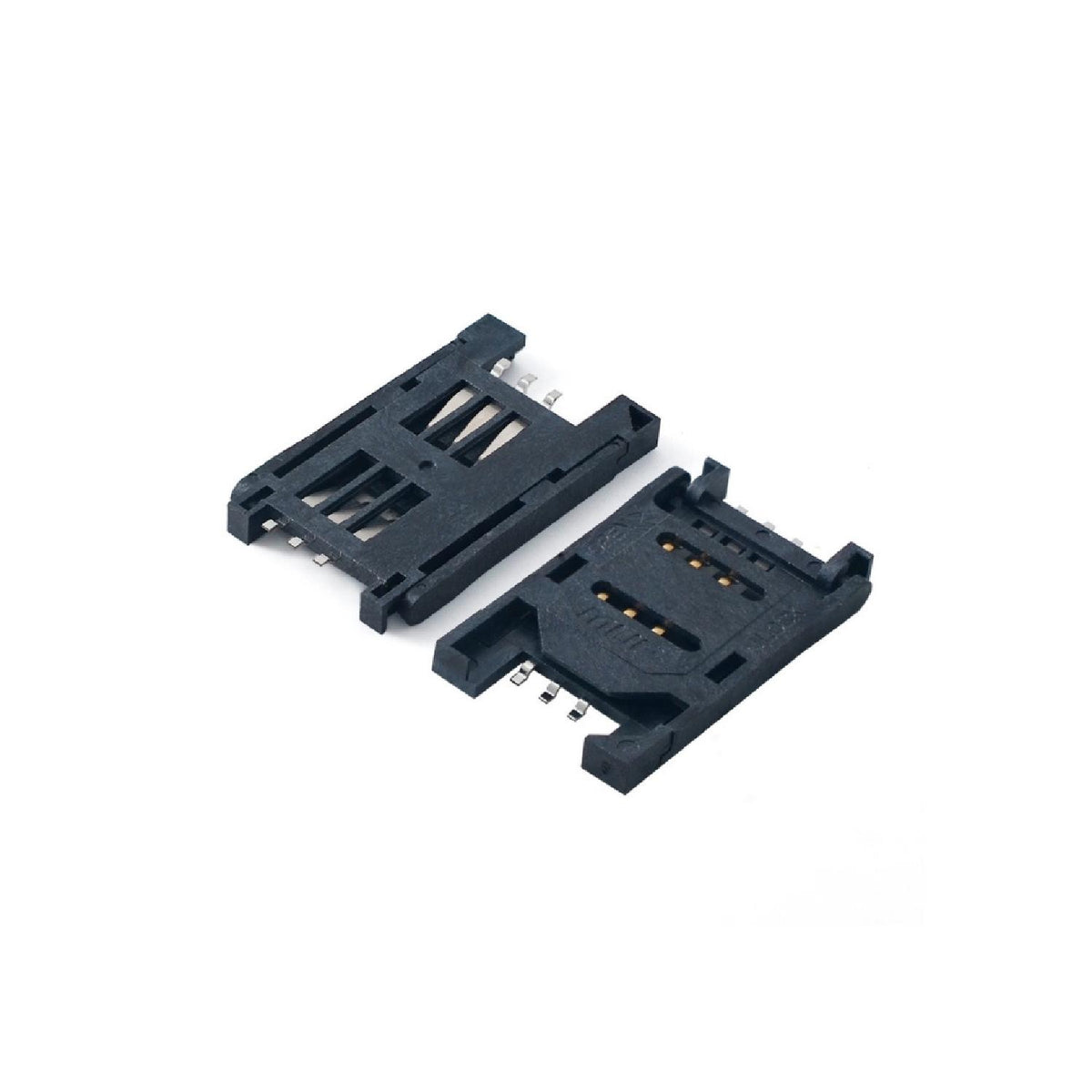

The C713 is in strict accordance with GSM11.11 international recognized standard. It is designed for top performance and adaptability to offer prospective customers a fast applications of the individual devices in their product series. Solderability: IR reflow: 260???.10Sec.Max and Manual soldering: 370???.3Sec.Max. Its Electrical Characteristics:

Contact resistance: 50mΩ typical, 100mΩ Max. and Insulation resistance: >1000mΩ /500V DC.

General characteristics: Dimensions:29.65L*17.20W*2.50/2.80Hmm, Weight:1.0g, Contact principle:Friction technology, Operating position:shaft up/down/horizontal,Mounting system:SMT(post optional), Durability:5000 cycles min. Mechanical characteristics- Insulation material:Thermoplastic,UL 94V-0. Environmental characteristics: Operating temperature: -40oC≈ +85oC, Operating humidity: 10%≈+95%RH, storage temperature:-40oC≈ +85oC, Storage humidity: 10%≈+95%RH, Thermal shock: -40oC≈+85oC, 5cycles, Damp Heat:40oC,90%RH,10days, Salt-mist:35oC,5%Nacl,24H.

Looking into the future, MUP will maintain our consistent management idea, stable quality, rapid delivery time and competitive price to share value and growing with customers worldwide. MUP would be one of the excellent suppliers in Smart Card Connector Industry!

MUP C713-6 pun connector has a number of highly experienced, passion and dedicated professional R&D team, who can Independent complete the design and R&D of new products, also can help customers to solve technical and quality problems related to products to ensure customer satisfaction. Experienced mould manufacturing team. With world-class mould design and processing equipment. The mould has the benefits of more precision and longer life. Have the whole process production capacity of the products. Have advanced production equipment. Continuous improvement of automatic production and assembly capacity. More standardized quality management. Strictly follow international advanced ISO Environmental Management System. Products fully meet EU ROHS Standard. Produce precision connectors with stable quality for customers.

Products widely utilized in banking equipment, computer communication, advertising machine, Automotive electronics, smart reader, smart watch, STB. This MUP C713 6 pin simcard Connector has a Good contact performance Combo SD/SIM, Mini, Micro, Nano, Block, and Chip. It is incorporated with PCB Mounting Side: Reverse, Normal Ejector Type: Bar-Push, Push-Pull, Push-Push, Pull-Lever, Block, Guide and Hole within.
