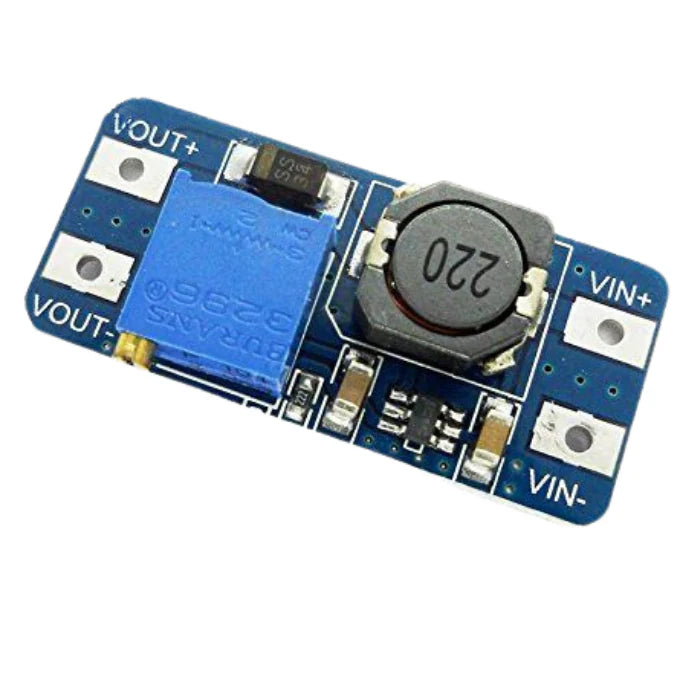

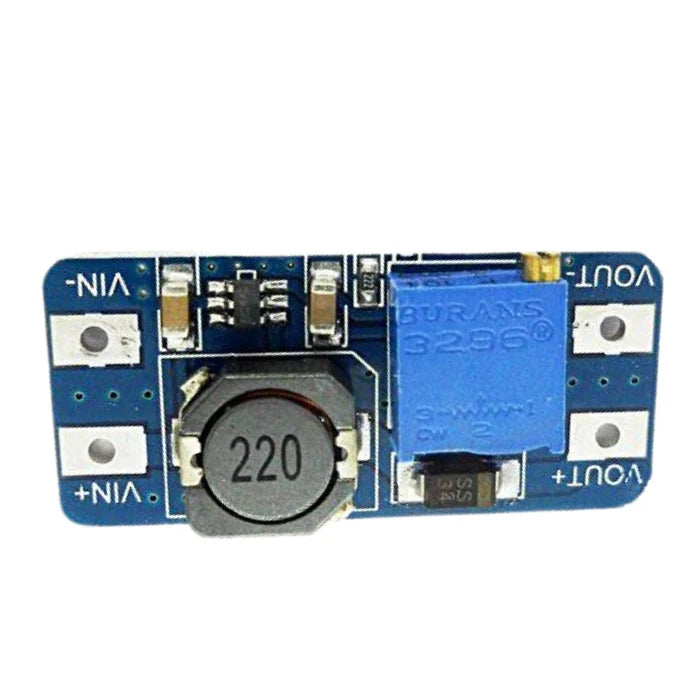

The MT3608 2A Max DC-DC Step Up Power Module Booster Power Module is a budget-friendly module that enables the user to step-up a 2 to 24V input voltage to a 5 to 28V output at a maximum of 2A.

DC-DC boost converters raise the input voltage to a higher voltage while simultaneously decreasing the available current since the module can't output more power than what it receives.

This boost converter is adjustable and can generate a voltage within the 5.0 to 28V range while providing a continuous current of up to 1.5A based on the input/output voltage settings, with 1A accessible with most configurations.

The input voltage should be lower than the output voltage, as the device operates as a boost converter.

The MT3608 converter IC integrates over-current and thermal limiting features to safeguard against device failure in the event of excessive stress. Furthermore, the converter can utilize low ESR bulk ceramic capacitors instead of electrolytic capacitors, which eliminates long-term aging concerns and contributes to the compact design of the device.

Features It’s efficient by up to 93%. It can source a good amount of current. It is an inexpensive converter module. It’s simple to adjust to get your desired increase in voltage.
