Name: L298P 4-channel Motor Driver Shield
Brand: STEMpitara
SKU: MCR-DEV-005
Price: 350.0 INR
Availability: InStock

1 3

L298P 4-channel Motor Driver Shield

Rs. 350.00

Sold out

Tax included. Shipping calculated at checkout.

Specifications

Driver IC: L298P (Dual H-bridge configuration)Logic
Input Voltage (\(V_{D}\)): 5V (from Arduino)Drive/Motor
Input Voltage (\(V_{S}\)): 6.5V to 12V (via VIN) or 4.8V to 35V (via external PWRIN)Logic
Working Current (\(I_{ss}\)): < 36 mA
Drive Operating Current (\(I_{o}\)): < 2A per channel
Maximum Power Dissipation: 25W (T = 75°C)Control
Signal Input Level: High: 2.3V \(\le V_{in} \le 5\text{V}\); Low: \(-0.3\text{V} \le V_{in} \le 1.5\text{V}\)
Working Temperature: -25°C to +130°C

Product variants

In stock

Request A Quote

Estimate delivery times: 3 to 5 working days

View full details Enquire on WhatsApp

Let us Know About Your Query!

Description

Specifications

Shipping Information

Reviews

Description

Compatible with the Arduino line of products. Trademark registrations throughout the world for ARDUINO or Arduino are owned by: Arduino AG and Arduino SA.

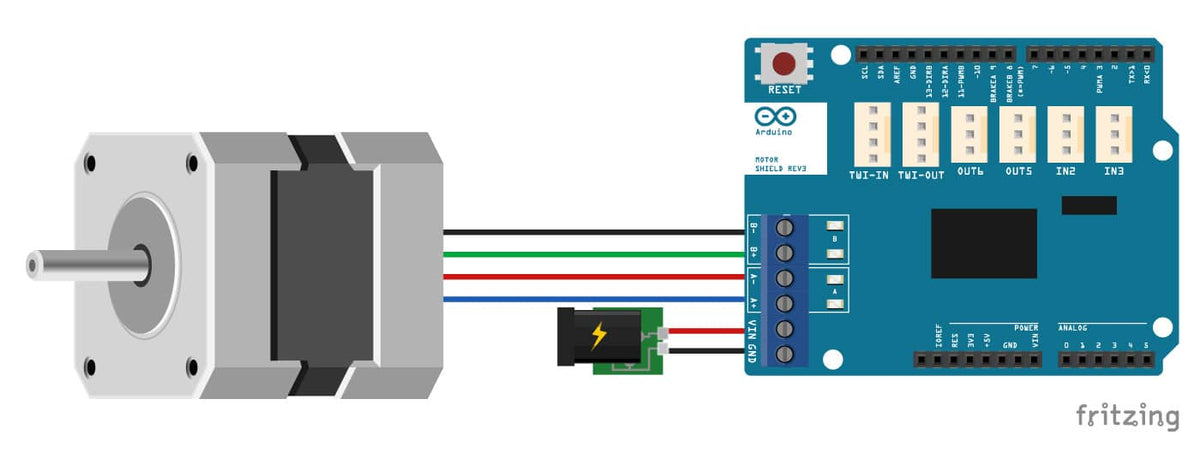

The Shield Motor is based on the L298, a full bridge double designed to drive inductive loads such as DC solenoid relays and stepper motors. It allows you to drive two DC motors with your board, controlling the speed and direction of each one independently.

Features :

Operating voltage from 5 V to 12 V
Motor controller, L298P drives 2 DC motors or stepper motor
Maximum current 2A per channel or 4A Max (with external power supply)
Current detection 1.65 V / A
Connections for Bluetooth module, 8x Servos, and multiple sensors
On-board Buzzer
Function braking and coasting

Specifications

Driver IC: L298P (Dual H-bridge configuration)Logic
Input Voltage (\(V_{D}\)): 5V (from Arduino)Drive/Motor
Input Voltage (\(V_{S}\)): 6.5V to 12V (via VIN) or 4.8V to 35V (via external PWRIN)Logic
Working Current (\(I_{ss}\)): < 36 mA
Drive Operating Current (\(I_{o}\)): < 2A per channel
Maximum Power Dissipation: 25W (T = 75°C)Control
Signal Input Level: High: 2.3V \(\le V_{in} \le 5\text{V}\); Low: \(-0.3\text{V} \le V_{in} \le 1.5\text{V}\)
Working Temperature: -25°C to +130°C
