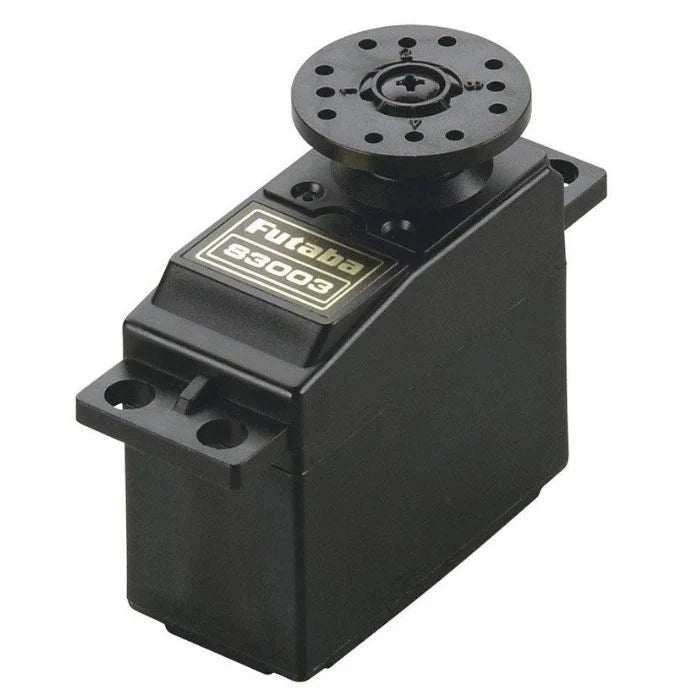

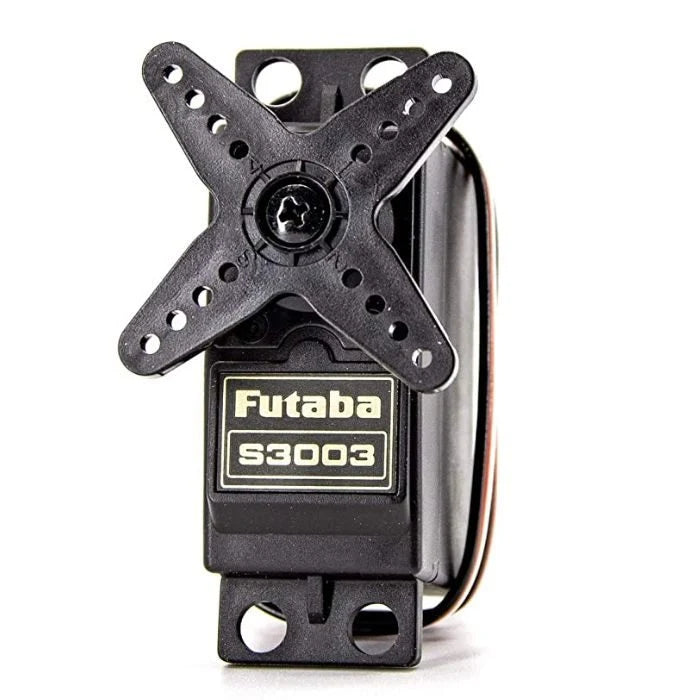

The Futaba S3003 Standard 3.2 kgcm Torque Servo Motor is an excellent multi-purpose standard-size high reliability servo motor that can be easily converted to continuous rotation. Because they have plastic gearing, they are not suitable for high-impact applications, but they are an excellent choice for beginners - ideal for moving robotic arms through a specific range or steering a rover!

you can control this servo motor with Arduino with the connection of jumper wires and battery.

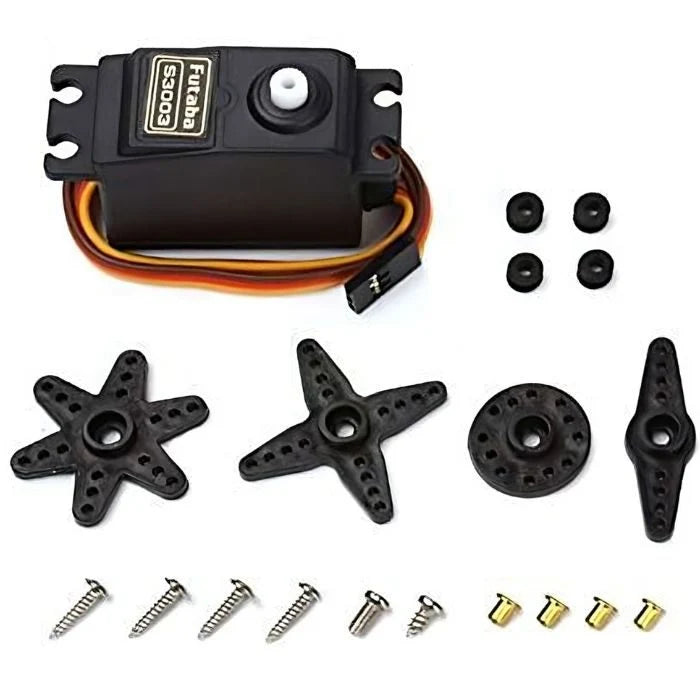

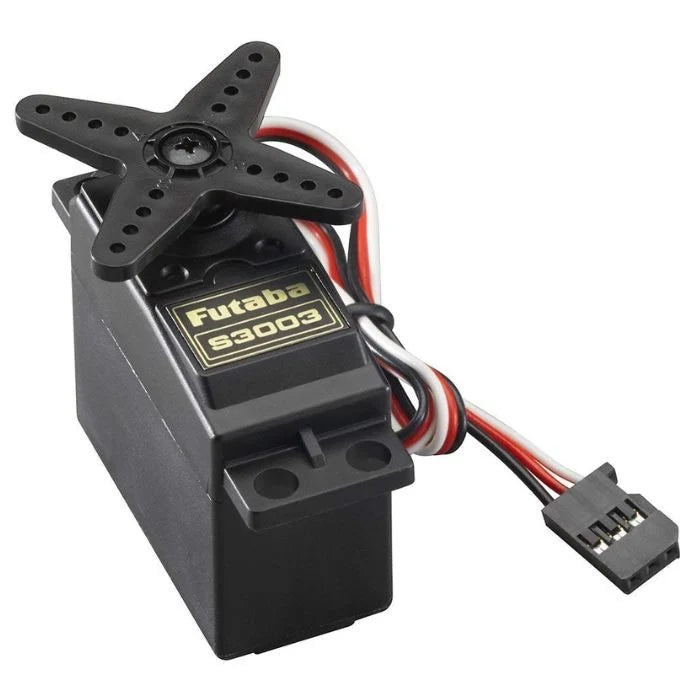

The unit includes a 30cm wire and a 3 pin 'S' type female header connector that will fit most receivers. This servo can rotate about 180 degrees (90 degrees in each direction), but it can be modified for full rotation, and it comes with a variety of horns and hardware to suit most applications! You can control these servos with any servo code, hardware, or library, making it ideal for beginners who want to make things move without building a motor controller with feedback and gear box, especially since it will fit in small spaces. They are ideal for use with the 16 Channel Servo Driver and other Raspberry Pi Motor Controllers.

Key Features: Torque: 4.8V: 44.00 oz-in (3.17 kg.cm); 6.0V: 57.00 oz-in (4.10 kg.cm) Speed: 4.8V: 0.23 sec/60°; 6.0V: 0.19 sec/60°

Applications :

1:10 and 1:8 flat cars
SUVs, trucks, big cars,
Climbing vehicle
Riped robot
Remote control boat model
Home automation projects
