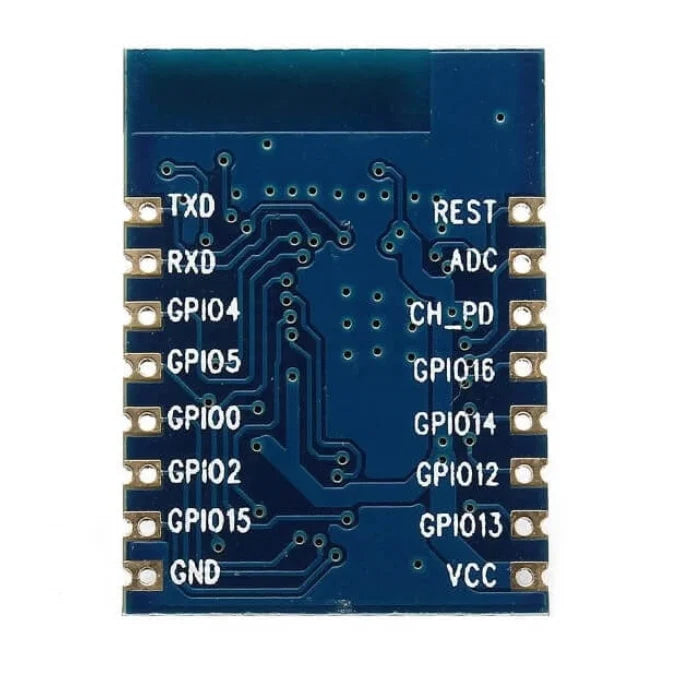

The ESP-07 WiFi module is developed by AI-Thinker Co., Ltd, has an ultra-low power 32-bit MCU micro, with a 16-bit short mode, clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, on-board antennas. The ESP ESP8266EX offers a complete and self-contained Wi-Fi networking solution; it can be used to host the application or to offload Wi-Fi networking functions from another application processor. When ESP8266EX hosts the application, it boots up directly from an external flash. It has an integrated cache to improve the performance of the system in such applications. This module has a powerful enough onboard processing and storage capability that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, which is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existence interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions and requires no external RF parts. Features: Core Processor: ESP8266 with Tensilica L106 ultra-low-power 32-bit micro MCU. Clock Speed: Supports 80 MHz and 160 MHz. WiFi Standards: 802.11 b/g/n. Interfaces: UART, GPIO, I2C, PWM, ADC. Built-in Features: Integrated Wi-Fi MAC/BB/RF/PA/LNA, onboard antenna. Memory: Internal SRAM and ROM, with support for external SPI flash. Power Consumption: Low power consumption, suitable for battery-operated projects. ADC: Built-in 10-bit high-precision ADC. Package: SMD-16 package for easy soldering

Specifications :

• Module Model: ESP-07
• WiFi Standard: 802.11 b/g/n
• Frequency Range: 2.4–2.5GHz (2400–2483.5MHz)
• Operating Voltage: 3.0–3.6V
• Security: WPA/WPA2
• Flash Memory: 4MB
