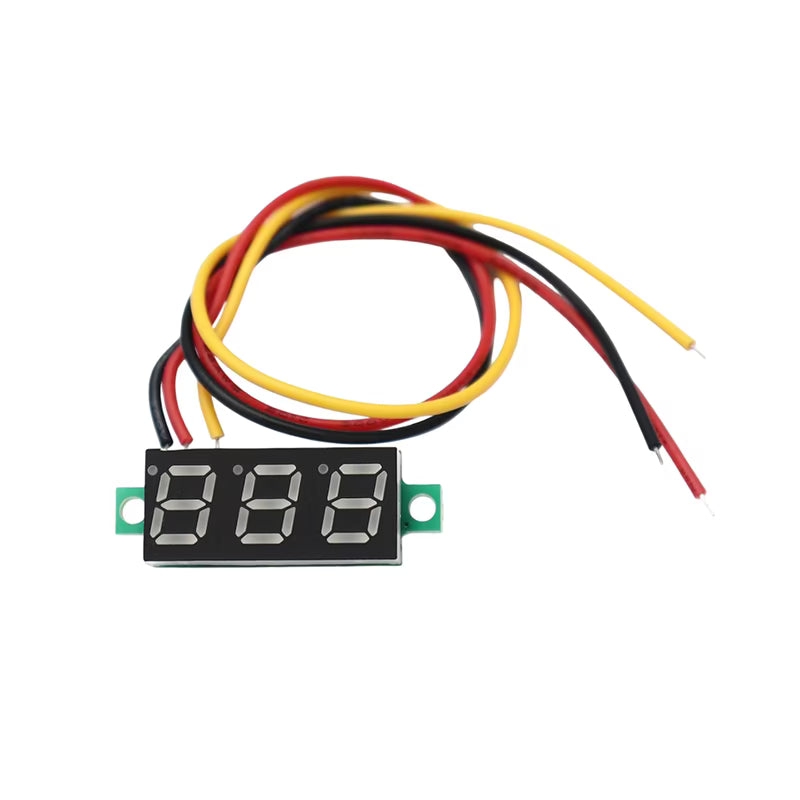

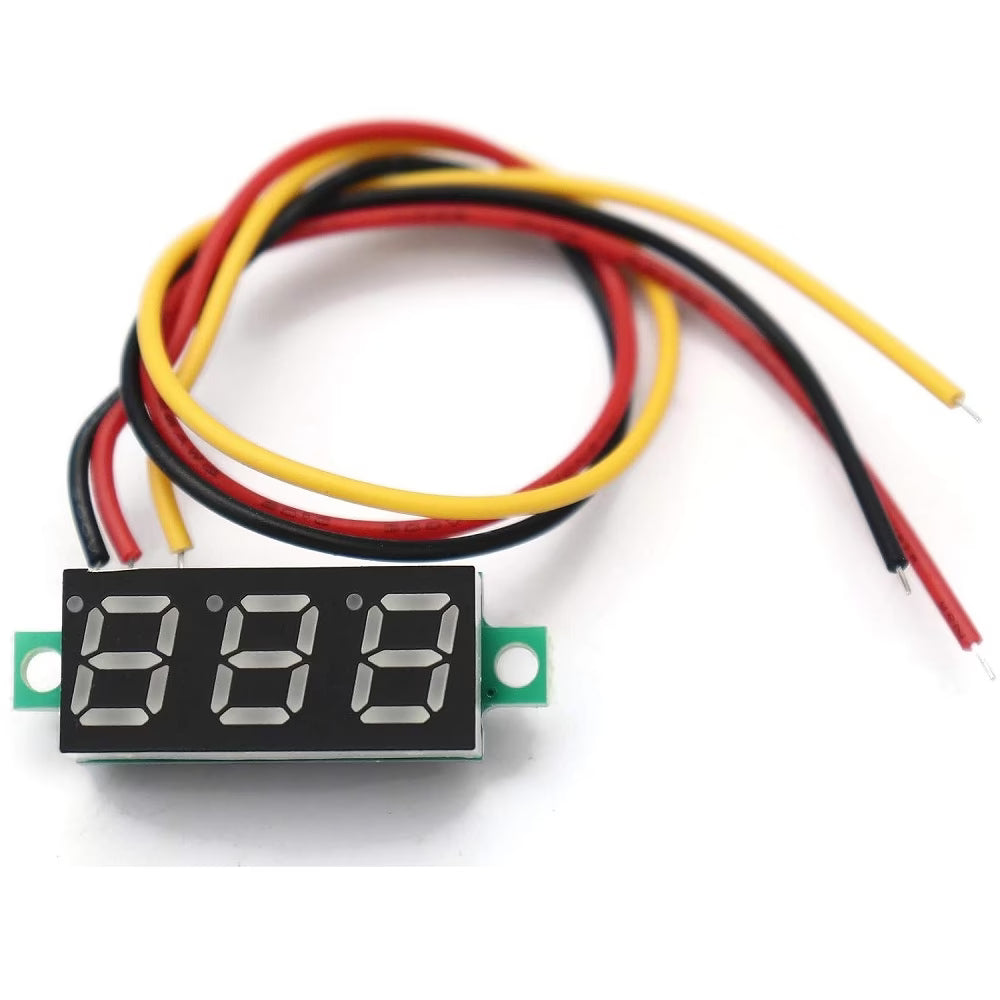

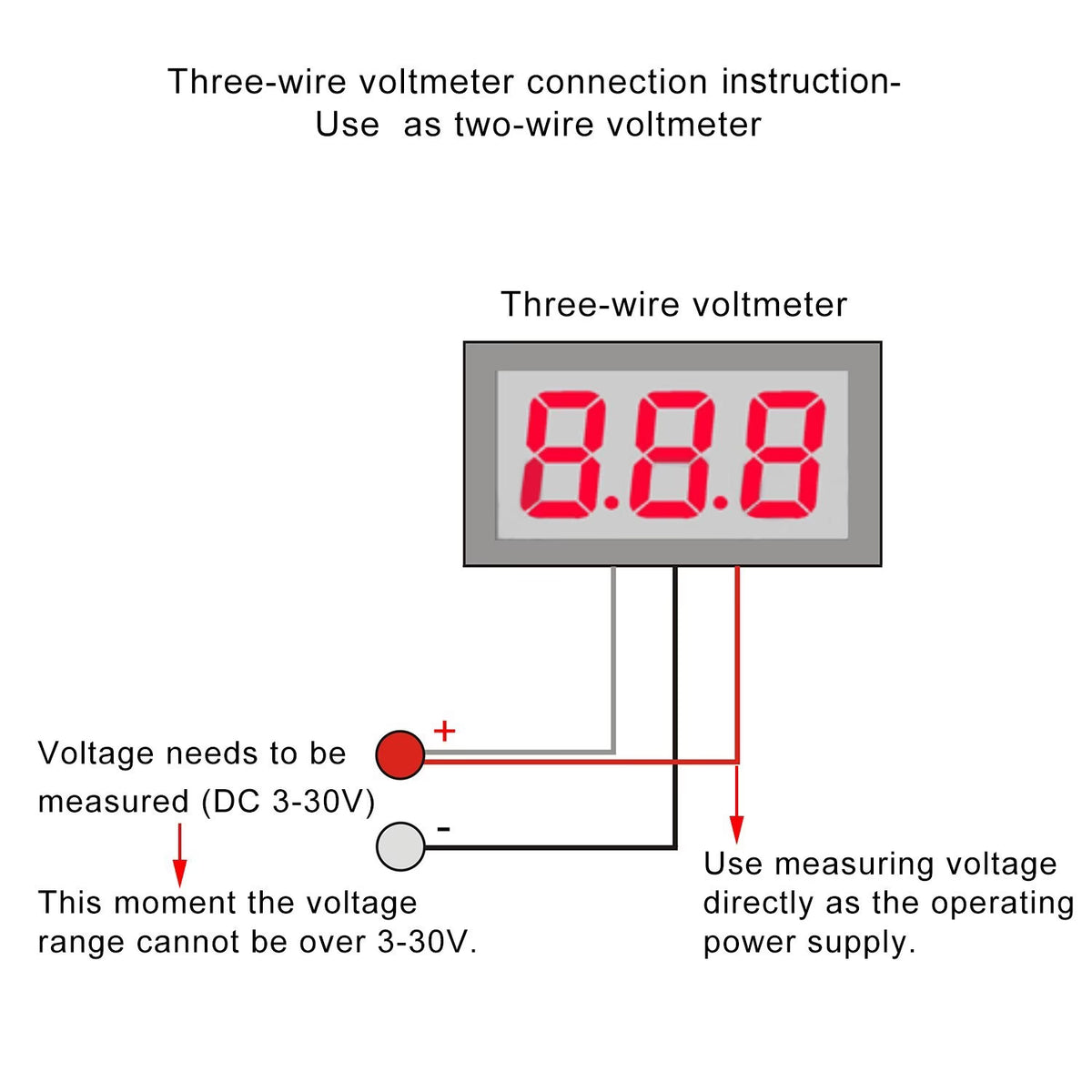

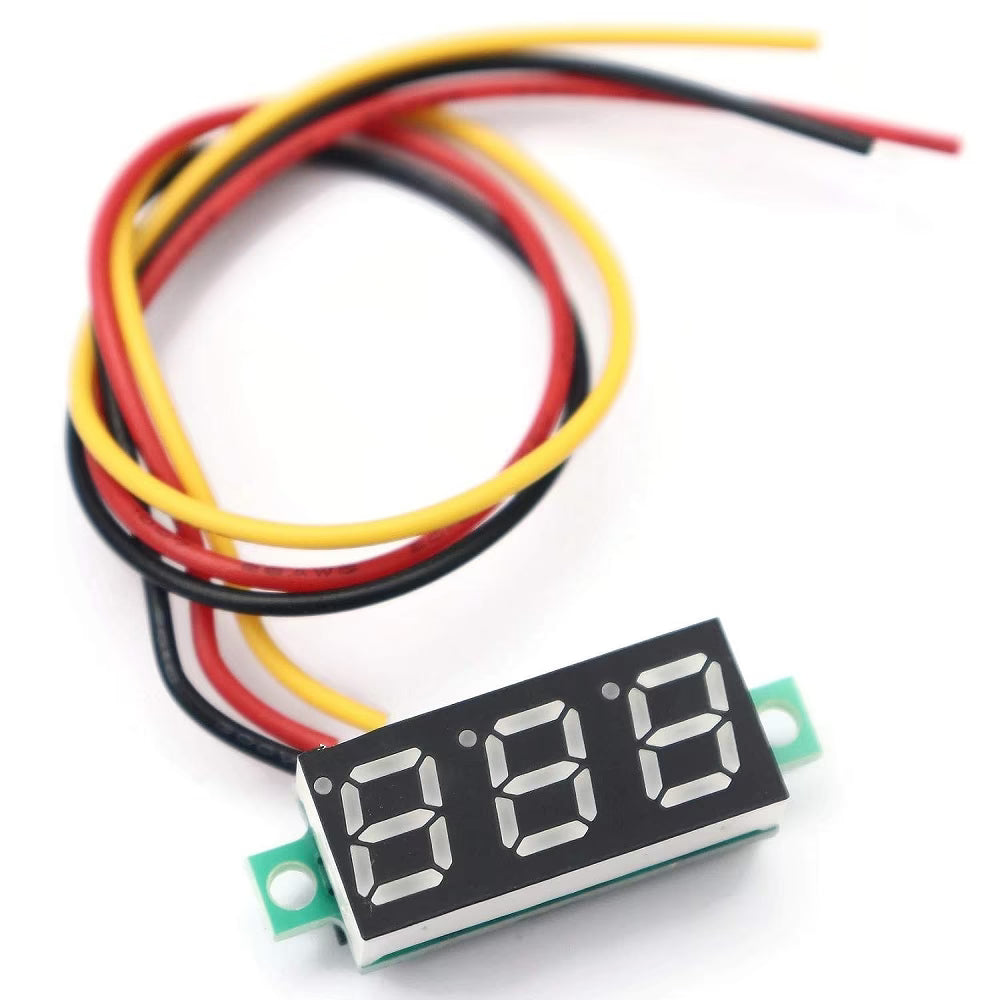

This is a 0.28 Inch 0-100V Three Wire DC Voltmeter Blue. This is a tiny and compact digital voltmeter with a blue LED Display. The 0 to 100 V 0.28-inch Digital Voltage Tester DC VOLTMETER requires only a few minutes of configuration and is as simple as directly connecting wires to the source you want to measure and seeing the LED blink!!!! The red wire is to connect to the positive pole, the black wire is to connect to the negative pole and the yellow/white wire is to connect to the positive pole of that source or another source across which we meant to measure the voltage. While measuring the supply voltage of another source make sure that the negative pole is joined common. No need to worry even if there is any connection mismatch of the wires, the electric circuit won't be a boom because it features reverse polarity protection. To reach the best measurement accuracy, this 0.28 Inch 0-100V Three Wire DC Voltmeter Blue will automatically move the decimal point's position according to the different measuring voltages. When it measures the voltage below 10V, it will display two places after the decimal point. When it measures the voltage above 10V, it will display one place after the decimal point. Very bright and decent LED Display is ready to measure the dc voltages in the range of 0V to 100V. It is small in size and light in weight, quite easy and convenient to carry out. Its small size which is only 0.28" with bright and sharp blue light visible LED display, easy to read even in dim light and low operating voltage. This 0.28 Inch 0-100V Three Wire DC voltmeter Blue can be used to measure the storage battery's voltage in motorcycles and cars and also can grasp the storage battery's status. It also can be used to measure other voltages. 100V is the voltmeter's maximum operating limited voltage, please leave enough margin when working, to avoid the voltmeter's permanent damage because of an electrical spark, power supply ripple, or other too high abrupt change of voltage. Features : Very small and lightweight voltmeter module. Very handy and easy to use. Blue LED display. Best operates in the working voltage range of 5V to 24V 100% Brand new and high quality. No direct exposure to sunlight product stability, high accuracy

Specifications :

• Model No. / Name: Voltmeter
• Refresh Speed: 200ms (One Time)
• Minimum Input Voltage: 3V
• Maximum Input Voltage: 30V
• Operating Temperature: -10°C to +60°C
• Mounting Hole PCD: 3mm
