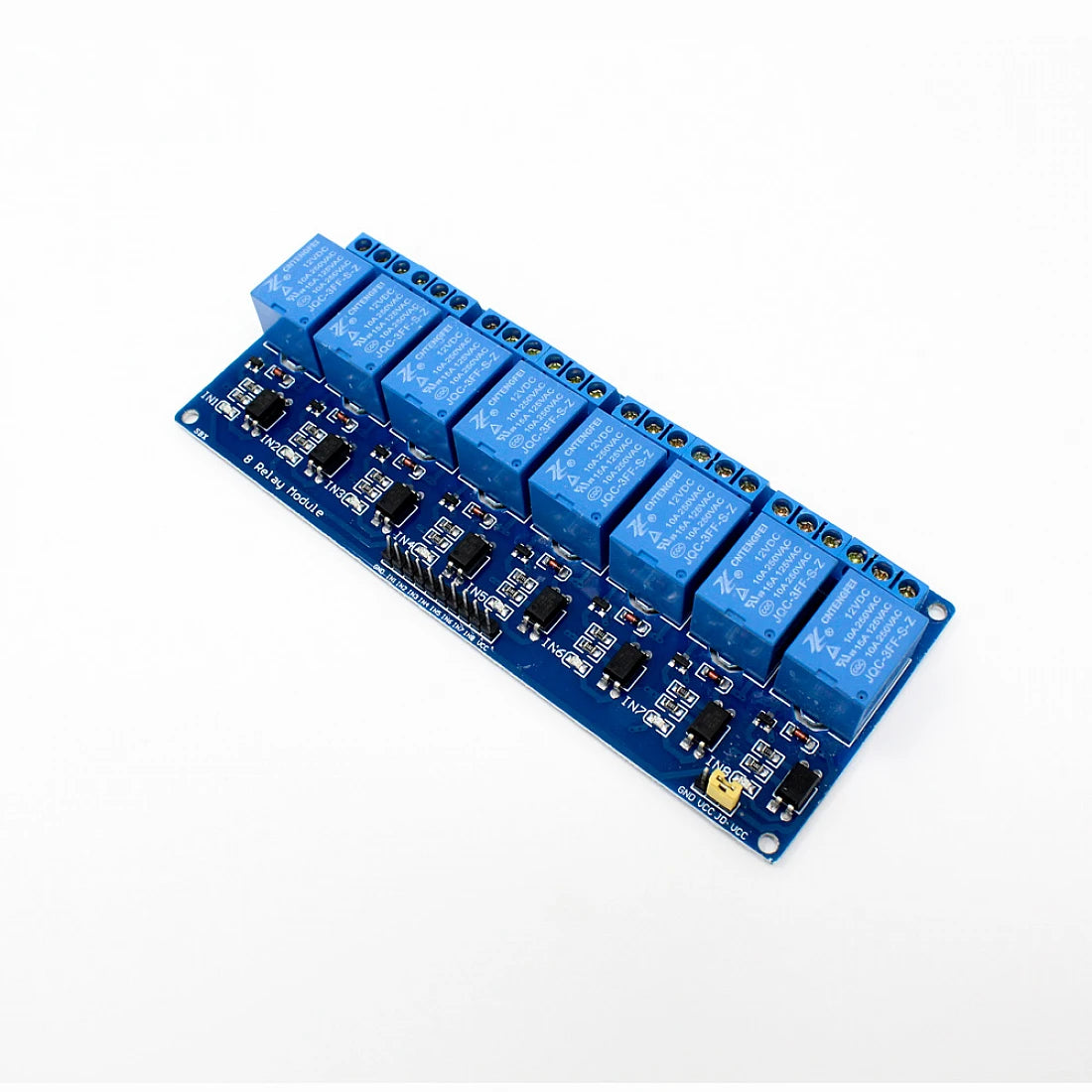

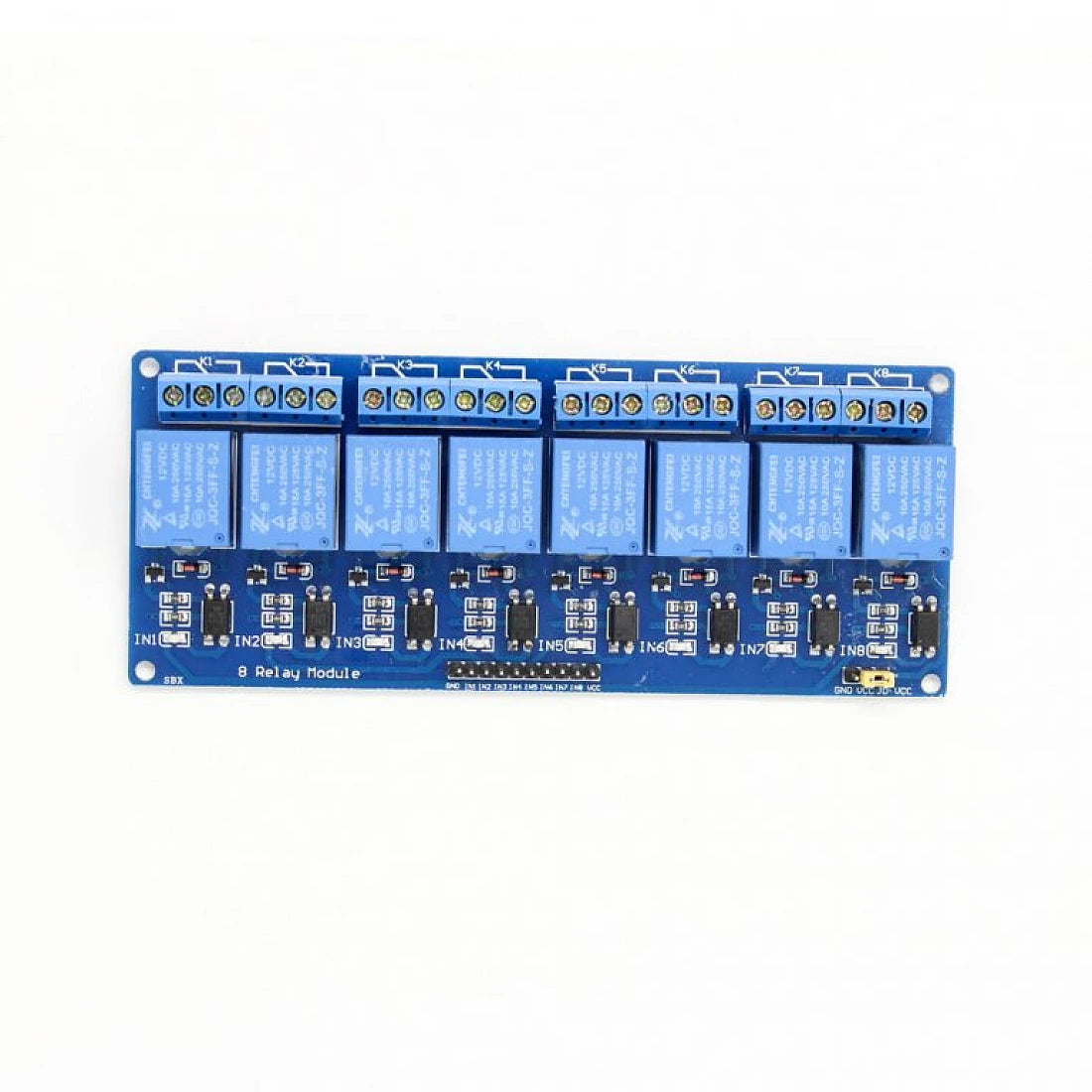

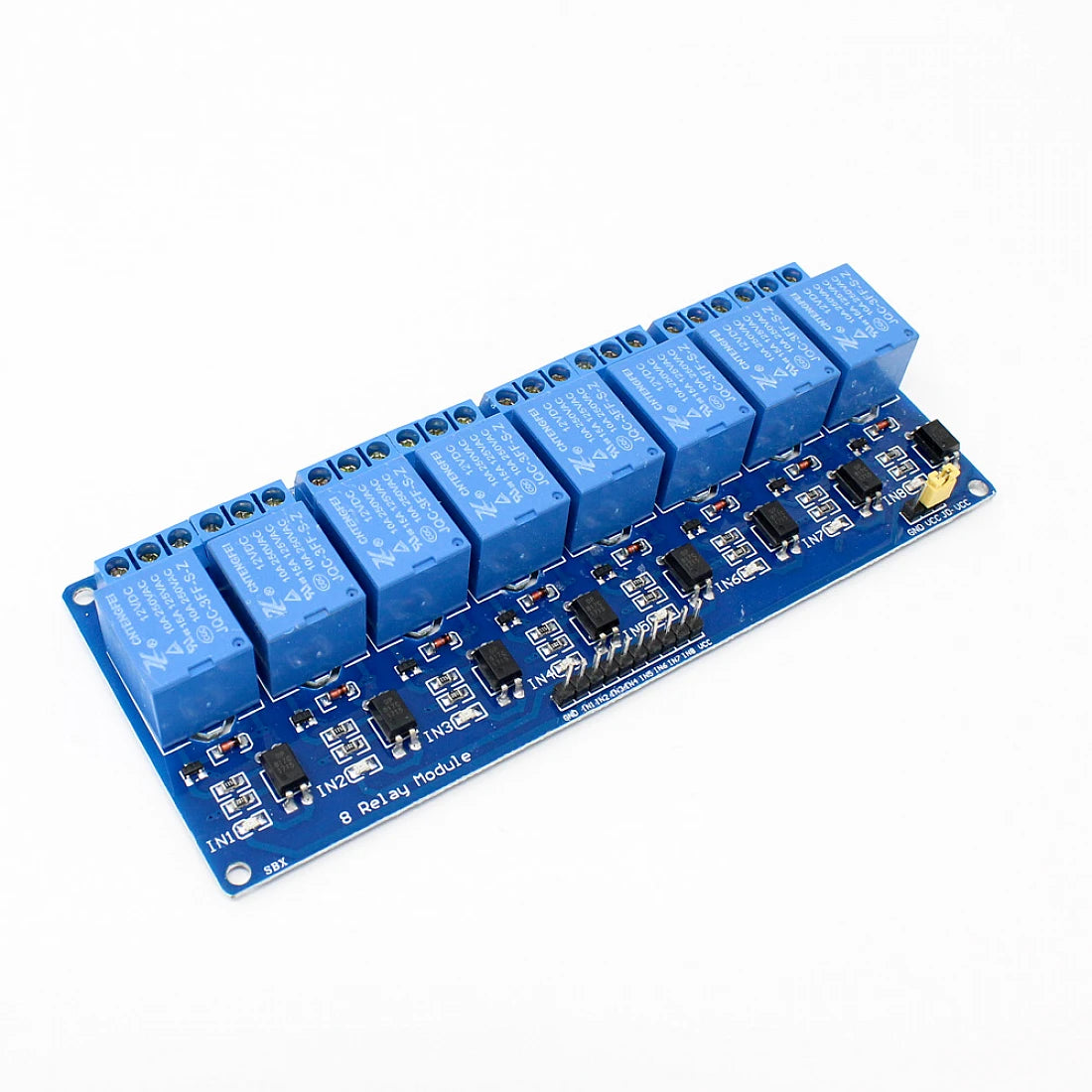

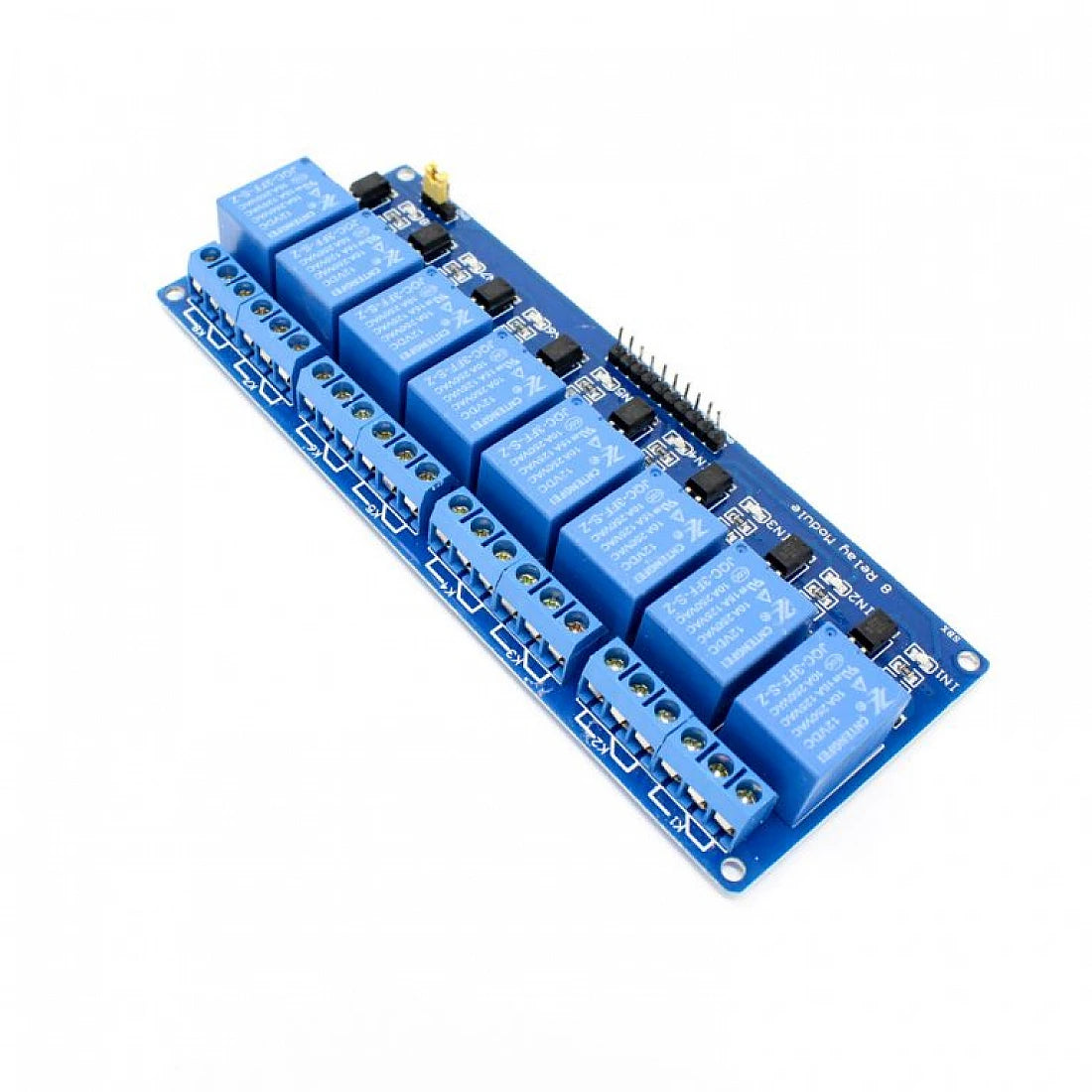

It is an 8 Channel Isolated 5V 10A Relay Module, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc. It is also able to control various appliances and other types of equipment with a large current. Relay output maximum contact is AC250V 10A and DC 5V 10A. One can connect a microcontroller with a standard interface directly to it. Red working status indicator lights are conducive to safe use. It has a wide range of applications such as all MCU control, industrial sector, PLC control, smart home control.

Specifications and Features:

Channel: 8 channel One normally closed contact and one normally open contact Triode drive, increasing relay coil High impedance controller pin Pull-down circuit for the avoidance of malfunction Power supply indicator and Control indicator lamp Relay Operating Voltage: 5V Power supply and relay instructions, lit, the disconnect is off; The input signal, signal, common Terminal and start conducting; Useful for appliance control; Equipped with high-current relay, AC250V 10A ; DC30V 10A. 5V 8-Channel Relay interface board and each one needs 15-20mA Driver Current Standard interface that can be controlled directly by a microcontroller. Opto-isolated inputs Indication LED’s for Relay output status. The module is compliant with international safety standards, control, and load areas isolation trenches.
