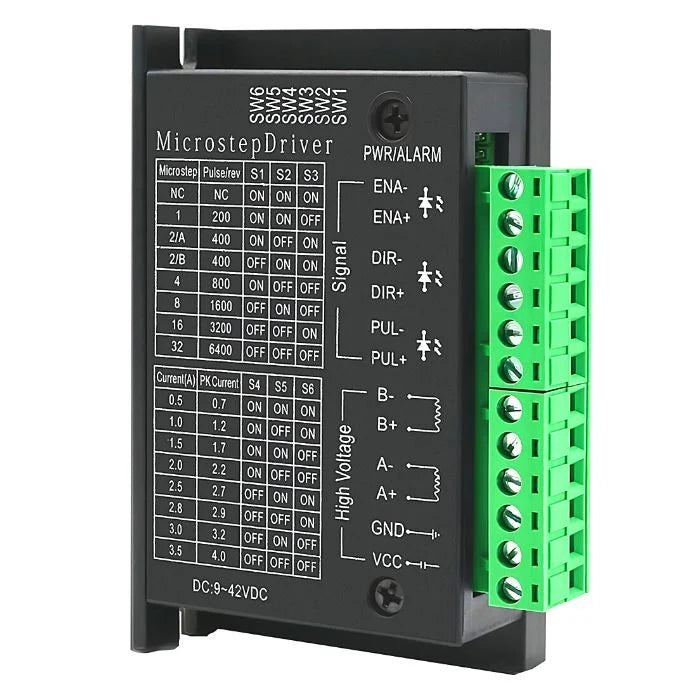

TB6600 Stepper Motor Driver Controller 4A is an easy-to-use professional Arduino stepper motor driver, also widely recognized as a tb6600 stepper motor driver, which can control a two-phase stepper motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. Jumper wires are used to connect the stepper motor to the Arduino.

The TB6600 driver has a wide range of power inputs and a 9~42VDC power supply. It is able to output a 4A peak current, which is enough for most of the tb6600 stepper motors. The stepper driver supports speed and direction control.

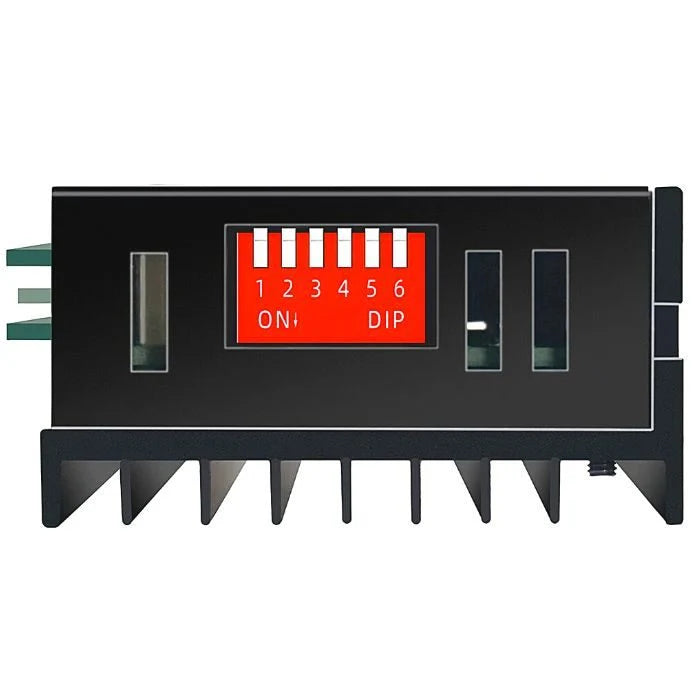

You can set its micro-step and output current with a 6 DIP switch. There are 7 kinds of micro-steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. The tb6600 stepper motor driver uses high-speed optocoupler isolation on all signal terminals, enhancing its anti-high-frequency interference ability.

As a professional device, this tb6600 module is capable of driving 57, 42-type two-phase, four-phase, and hybrid stepper motors.

TB6600 Stepper Motor Driver Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis Upgraded Version of the 42/57/86 Stepper Motor segment increased to 32 segments, suitable for high subdivision applications. Suitable for step motor:57, 42, 86 Type 4 phase 2 phase (4 line 6 line 8).          Features:
Bipolar constant current H bridge drive
This has eight different types of output current available.
This has six different subdivision modes are available.
High-speed photoelectric isolation of the input signal
Offline storage function.

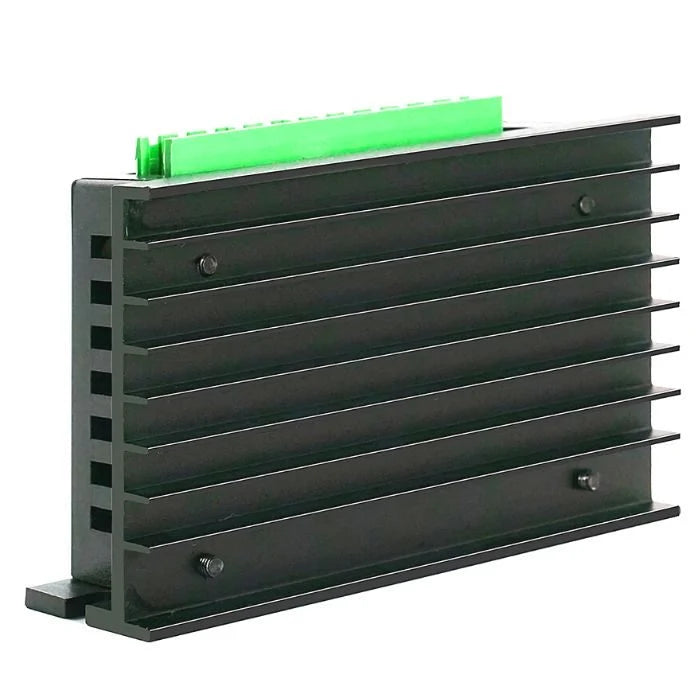

The semi-enclosed casing is capable of adapting to a more demanding environment.
Provide a half-automatic current lock function to save energy.
