View compareBroadcom/AVAGO HEDS-9700#F50 SIP-4-2.54mm Sensor Modules ROHS

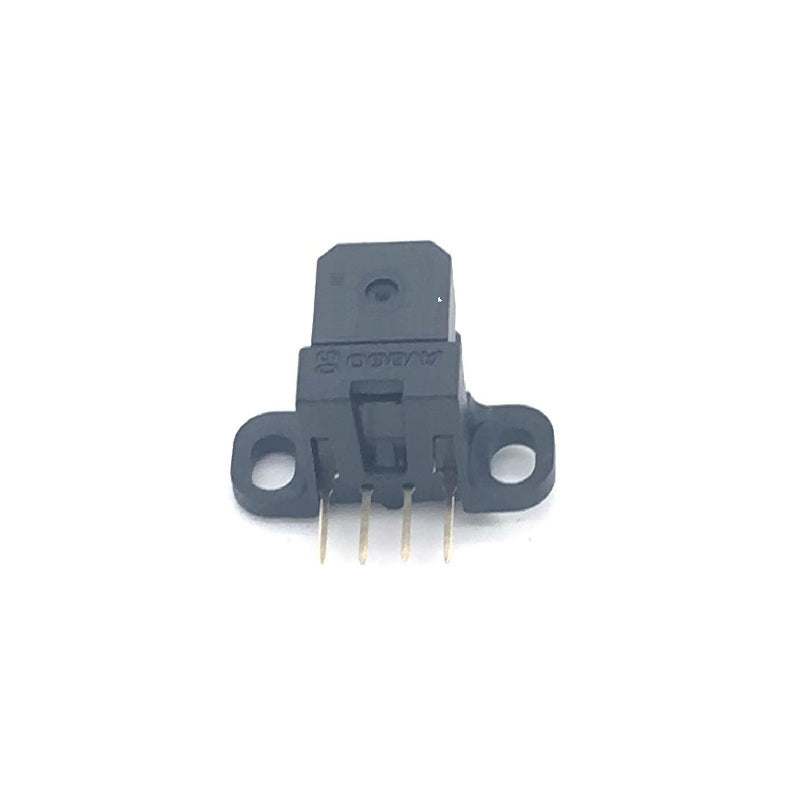

Broadcom/AVAGO HEDS-9700#F50 SIP-4-2.54mm Sensor Modules ROHS
Regular price
Rs. 450.00
Regular price
Sale price
Rs. 450.00
Tax included.
Shipping calculated at checkout.
Specifications
In stock
Estimate delivery times: 3 to 5 working days
Let us Know About Your Query!
Contact Us
Description
Specifications
Attachments
Shipping Information
Reviews
Description
The HEDS-9700 series Sensor Modules ROHS is a high performance, low cost, optical incremental encoder module. When operated in conjunction with either codewheel or codestrip, Broadcom/AVAGO HEDS-9700#F50 SIP-4-2.54mm Sensor Modules ROHS module detects rotary or linear position.
The module consists of a lensed LED source and a detector IC enclosed in a small C-shaped plastic pack age. Due to a highly collimated light source and a unique photodetector array, the module is extremely tolerant to mounting misalignment. The two channel digital outputs and 5V supply input are accessed through four solder-plated leads located on 2.54 mm (0.1 inch) centers. The standard HEDS-9700 is designed for use with an 11 mm optical radius codewheel, or linear codestrip. Other options are available. Please contact factory for more information.
Features:
Small Size
Low Cost
Multiple Mounting Options
Wide Resolution Range
Linear and Rotary Options Available
No Signal Adjustment Required
Insensitive to Radial and Axial Play
-40°C to +85°C Operating Temperature
Two Channel Quadrature Output
TTL Compatible
Single 5V Supply
Wave Solderable
